| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

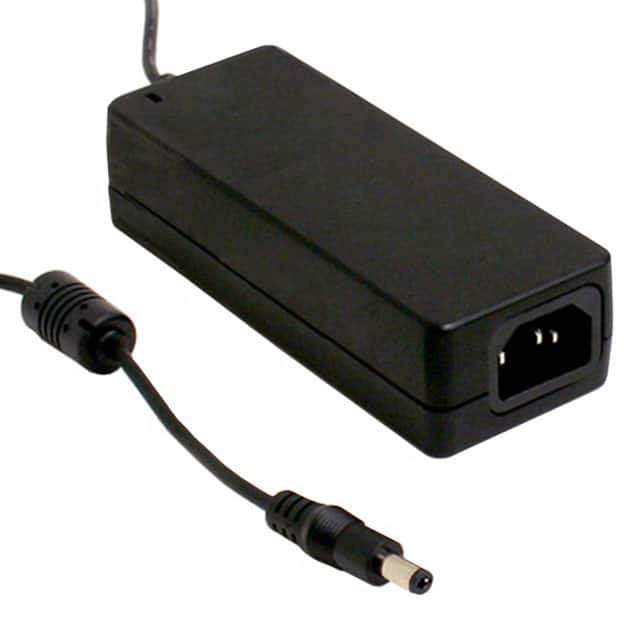

The Mean Well USA GST60A24-P1M is an AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 24V output with a maximum current of 2.5A, providing a total power of 60W. This adapter features Level VI efficiency, ensuring energy savings and reduced heat generation.
The input connector is a standard IEC 320-C14, compatible with various power cords. The output is delivered via a 2.5mm I.D. x 5.5mm O.D. barrel plug with a positive center polarization. The unit operates within a wide temperature range of -30°C to 70°C, making it suitable for diverse environmental conditions. Its compact dimensions (125.0mm x 50.0mm x 31.5mm) allow for easy integration into various systems.
This adapter is approved by multiple international agencies including BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM, ensuring compliance with global safety and performance standards. The RoHS3 compliant status indicates adherence to environmental regulations regarding hazardous substances.
The output voltage is 24V DC.
The output current is 2.5A.
The power rating is 60W.
It uses an IEC 320-C14 input connector.
The output connector is a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 11.0mm dimensions.
The operating temperature range is -30°C to 70°C.
It is approved by BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM.
