| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

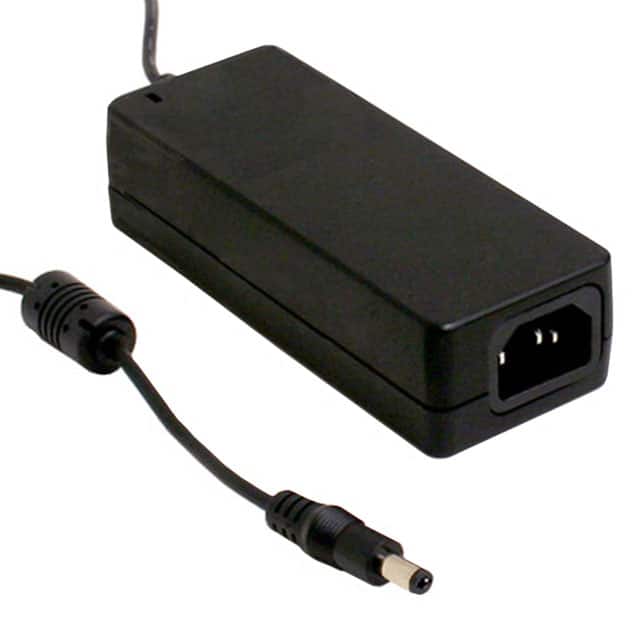

The Mean Well USA GST60A12-P1MR is a versatile AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 5A, providing a total power of 60W.
This adapter meets Level VI efficiency standards and features a compact desktop form factor (Class I). The input is an IEC 320-C14 connector, and the output is a standard barrel plug with positive center polarization (2.5mm I.D. x 5.5mm O.D.).
Operating within a wide temperature range of -30°C to 70°C, the GST60A12-P1MR is suitable for various environmental conditions. Its dimensions are 125.0mm x 50.0mm x 31.5mm. The no-load power consumption is a low 75mW (Max).
Designed for international use, this adapter is compliant with RoHS3 standards and has an MSL rating of 1.
The GST60A12-P1MR has an output voltage of 12V and a maximum current of 5A.
The power rating for the GST60A12-P1MR is 60W.
The GST60A12-P1MR has a Level VI efficiency rating.
The operating temperature range for the GST60A12-P1MR is -30°C to 70°C.
The adapter uses an IEC 320-C14 input connector.
The dimensions are 125.0mm in length, 50.0mm in width, and 31.5mm in height.
The GST60A12-P1MR is RoHS3 Compliant.
