| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

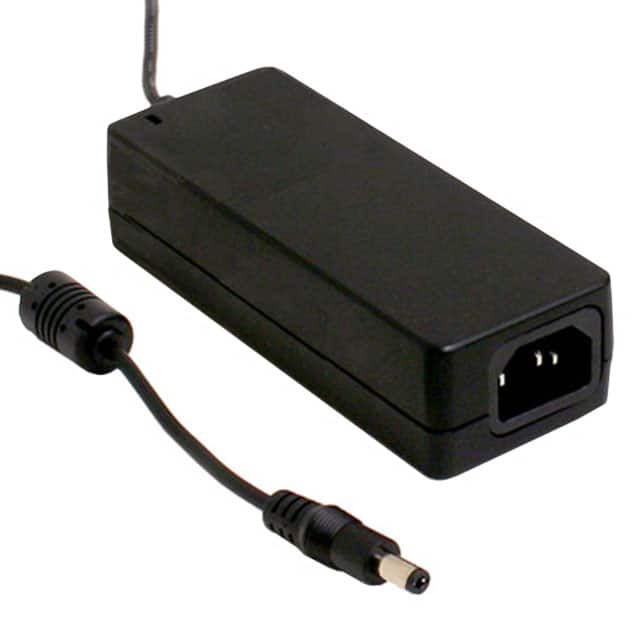

The Mean Well USA GST40A24-P1JR is a 40W AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 1.67A.
This adapter meets Level VI efficiency standards, ensuring energy savings and reduced heat generation. It operates within a wide temperature range of -30°C to 70°C. The input connector is a standard IEC 320-C14, and the output is a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization.
With dimensions of 125.0mm x 50.0mm x 31.5mm, this desktop adapter is compact for various installations. It features a low no-load power consumption of 75mW maximum. The adapter is suitable for international use and complies with RoHS3 standards.
The output voltage is 24VDC.
The maximum output current is 1.67A.
The power rating is 40W.
The efficiency rating is Level VI.
The operating temperature range is -30°C to 70°C.
It uses an IEC 320-C14 input connector.
The dimensions are 125.0mm x 50.0mm x 31.5mm.
