| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

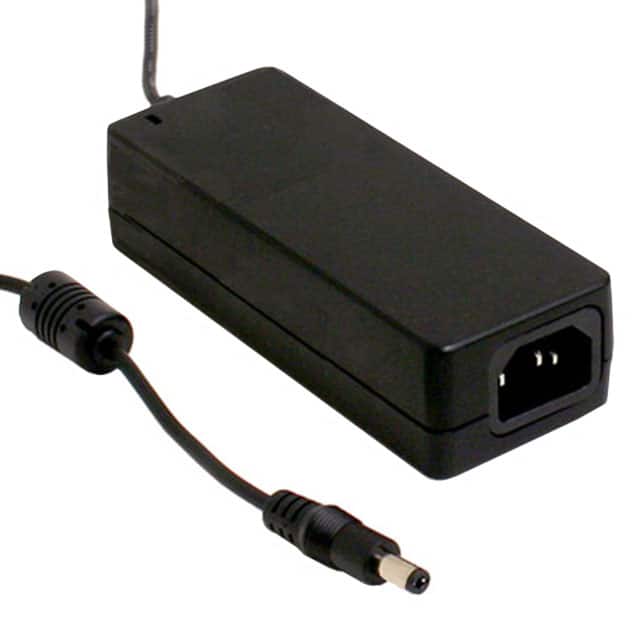

The Mean Well USA GST40A12-P1MR is a versatile 40W AC/DC desktop adapter designed for ITE commercial applications. It delivers a stable 12V output with a current rating of 3.34A, ensuring reliable power for various devices.
This adapter complies with Level VI efficiency standards, minimizing energy consumption. It features a universal input voltage range of 100-240VAC and utilizes an IEC 320-C14 input connector. The output is delivered via a 2.5mm I.D. x 5.5mm O.D. barrel plug with a positive center polarization, and a cord length of 39.4 inches (1.00m).
Operating within a wide temperature range of -30°C to 70°C, the GST40A12-P1MR is built for demanding environments. Its compact dimensions (125.0mm x 50.0mm x 31.5mm) make it suitable for space-constrained applications. The adapter also boasts a low no-load power consumption of 75mW (Max).
Key compliance approvals include BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM, making it suitable for international use.
The operating temperature range is -30°C to 70°C.
Output voltage is 12V and output current is 3.34A.
The input voltage range is 100-240VAC.
The output connector is a right-angle barrel plug with 2.5mm inner diameter, 5.5mm outer diameter, and 11.0mm length.
The adapter meets Level VI efficiency standards.
It has approvals including BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM.
No load power consumption is 75mW maximum.
