GST40A12-P2JR
Mean Well USA
The Mean Well USA GST40A12-P2JR is a 40W AC/DC desktop adapter providing a 12V output at 3.34A. It meets Level VI efficiency standards.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

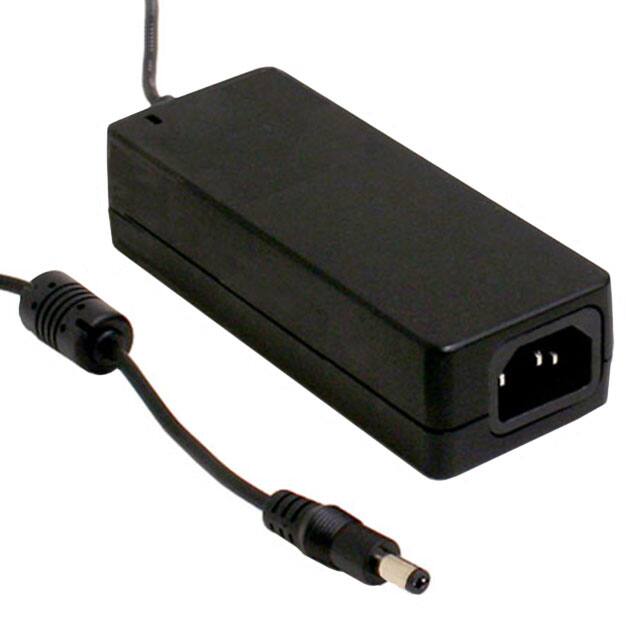

The Mean Well USA GST40A12-P1JR is a 40W AC/DC desktop power adapter designed for ITE commercial applications. It provides a stable 12V output with a current rating of 3.34A.
This adapter meets Level VI energy efficiency standards and operates within a wide temperature range of -30°C to 70°C. It features an IEC 320-C14 input connector and a positive center barrel plug output connector (2.1mm ID x 5.5mm OD).
The compact desktop form factor measures 125.0mm x 50.0mm x 31.5mm. It has a low no-load power consumption of 75mW maximum. The input type requires a cord, sold separately, with a cord length of 39.4 inches (1.00m).
Compliance includes BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM approvals. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The adapter provides a 12V output voltage and a current of 3.34A.
The power rating is 40W.
The adapter has an efficiency rating of Level VI.
The operating temperature range is -30°C to 70°C.
It uses an IEC 320-C14 input connector.
The output connector is a Barrel Plug R/A with a Positive Center polarization.
The RoHS status is RoHS3 Compliant.
