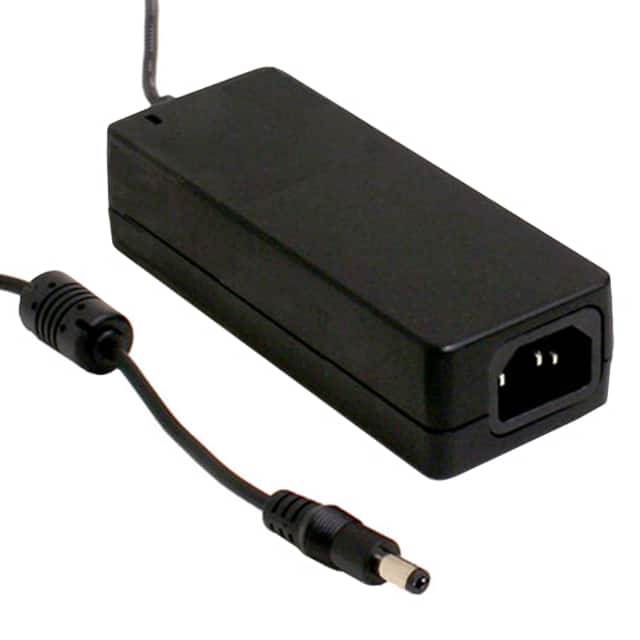

The Mean Well USA GST40A05-P1J is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It provides a stable 5V output with a maximum current of 5A, delivering a total power of 25W. This adapter meets Level VI energy efficiency standards and operates within a wide temperature range of -30°C to 70°C.
The unit features an IEC 320-C14 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. Its compact dimensions are 125.0mm x 50.0mm x 31.5mm, making it suitable for various space-constrained designs. The adapter is classified as Desktop (Class I) and is designed for international use, supporting a wide range of global voltage inputs.
Compliance is indicated with RoHS3 status, MSL 1, and REACH Unaffected. The input type is specified as Cord (Sold Separately), with an available cord length of 39.4 inches (1.00m). This adapter is suitable for applications requiring reliable and efficient power conversion.
The operating temperature range is -30°C to 70°C.
The adapter meets Level VI efficiency standards.
The maximum no load power consumption is 75mW.
The output connector is a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm length, positive center.
The input connector is an IEC 320-C14.
It is approved by BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM.
The output is positive center.
