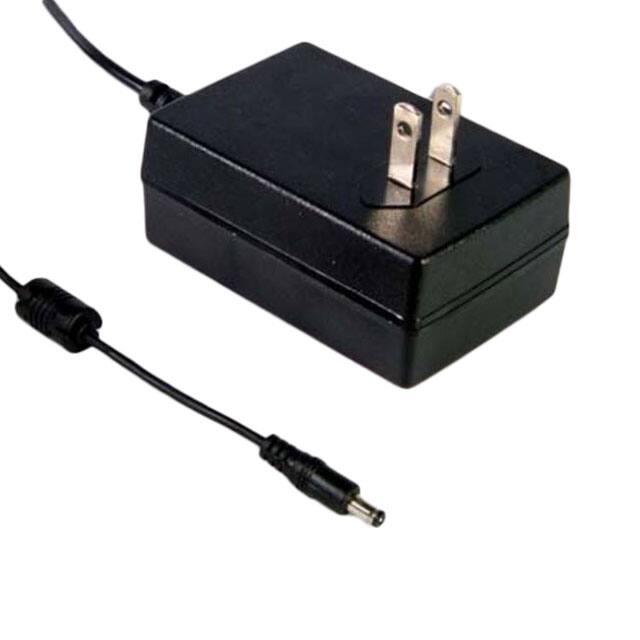

The Mean Well USA GST36U12-P1M is a 36-watt AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 3A.
This adapter meets Level VI energy efficiency standards and operates within a wide temperature range of -30°C to 70°C. It features a NEMA 1-15P input connector suitable for North American regions and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization.
The compact dimensions of 79.0mm x 54.0mm x 33.0mm make it suitable for various installations. The unit has a low no-load power consumption of 75mW (Max) and is designed as a Class II wall mount form factor.
Compliance includes BSMI, CB, cULus, and EAC approvals. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is Unaffected.
The GST36U12-P1M provides a 12V output voltage and a maximum output current of 3A.
The adapter has a power rating of 36W.
The operating temperature range is -30°C to 70°C.
Yes, it meets Level VI energy efficiency standards.
It uses a NEMA 1-15P input connector.
The dimensions are 79.0mm in length, 54.0mm in width, and 33.0mm in height.
