| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

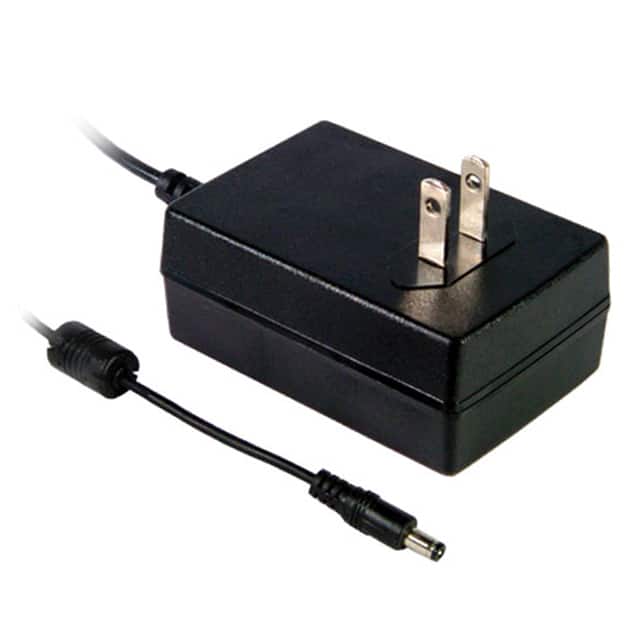

The Mean Well USA GST36U05-P1J is a 22W AC/DC external wall mount adapter designed for commercial ITE applications. It features a 5V output voltage and a maximum output current of 4.3A, operating within an input voltage range of 85 to 264 VAC. This adapter meets Level VI efficiency standards and has a fixed blade input connector (NEMA 1-15P) and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm).
The unit is designed for wall mounting and has a positive center polarization. Its compact dimensions are 79.0mm x 54.0mm x 33.0mm. The operating temperature range is from -30°C to 70°C. The cord length is 1.00 meter (39.4 inches). The adapter is RoHS3 compliant and has an MSL rating of 1 Unlimited.
Key specifications include a low no-load power consumption of 75mW (Max). The adapter is approved by agencies including BSMI, CB, cULus, and EAC, making it suitable for use in North America.
The GST36U05-P1J adapter has an output voltage of 5V and a maximum output current of 4.3A.
The GST36U05-P1J adapter has a power rating of 22W.
The GST36U05-P1J adapter meets Level VI efficiency standards.
The GST36U05-P1J adapter can operate within a temperature range of -30°C to 70°C.
The GST36U05-P1J adapter features a NEMA 1-15P input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm).
