| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

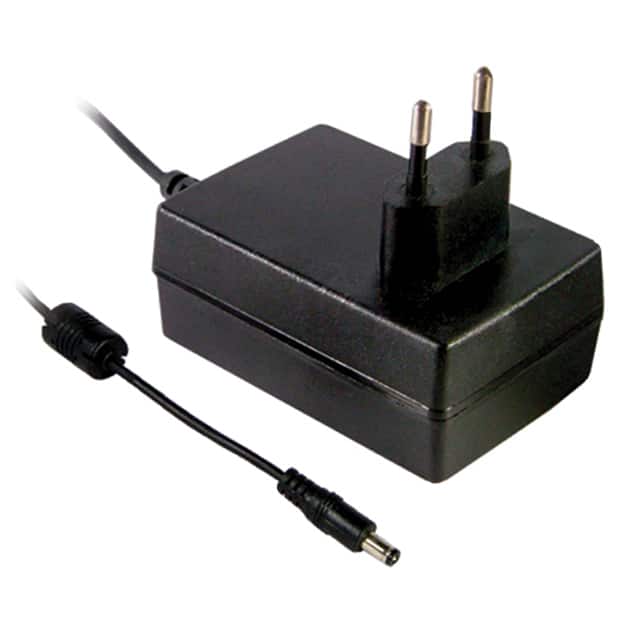

The Mean Well USA GST36E48-P1J is a versatile AC/DC wall mount adapter delivering 36 watts of power with a 48V output voltage. Designed for ITE (Commercial) applications, this adapter adheres to Level VI efficiency standards, ensuring optimal energy usage.
Key features include a fixed blade input type for Europe region utilization and a CEE 7/16 input connector. The output is provided via a standard barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 11.0mm, and it supports positive center polarization. The operating temperature range is from -30°C to 70°C, making it suitable for various environments.
With dimensions of 79.0mm x 54.0mm x 33.0mm, the adapter is compact and practical for wall mounting. It also boasts a low no-load power consumption of 75mW (Max). The unit is compliant with RoHS3 standards and has an MSL rating of 1.
48V DC.
750mA.
36W.
Level VI.
CEE 7/16 fixed blade.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
-30°C to 70°C.
