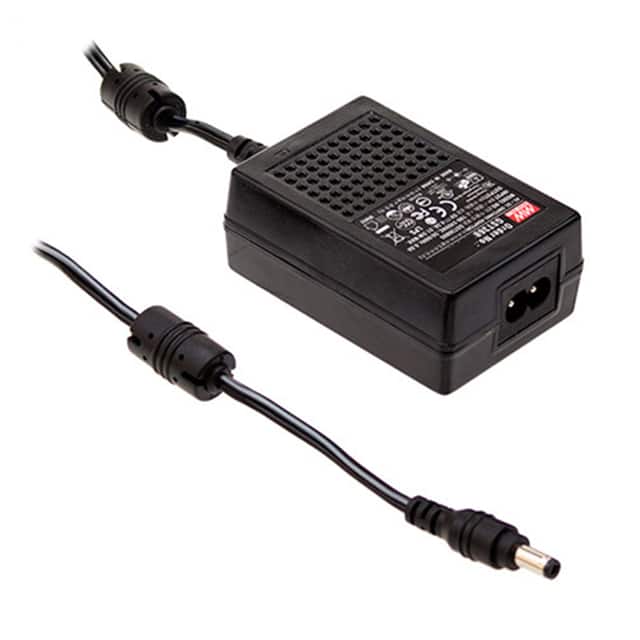

GST36B09-P1J The Mean Well GST36B09-P1J is a 28W AC/DC desktop adapter featuring a 9V output and universal 85-264VAC input. It offers Level VI energy efficiency.
Mfr Part #:

GST36B09-P1J

Mfr Name: Mean Well USA
Mean Well USA
The Mean Well GST36B09-P1J is a 28W AC/DC desktop adapter featuring a 9V output and universal 85-264VAC input. It offers Level VI energy efficiency.
Stock on Request

GST36B09-P1J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Overload Protection
Polarization
Power (Watts)
Region Utilized
Voltage
Width

GST36B09-P1J Description

Short technical summary and product information.

The Mean Well GST36B09-P1J is a reliable 28W AC/DC desktop adapter designed for various applications. It operates with a universal input voltage range of 85-264VAC and provides a stable 9VDC output at 3.11A.



This adapter meets Energy Efficiency Level VI standards, ensuring reduced power consumption, especially with a low no-load power consumption of less than 0.075W. It features protections against short circuit, overload, and over voltage, enhancing operational safety.



The GST36B09-P1J utilizes an IEC 320-C8 AC input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center. Its fully enclosed plastic case makes it suitable for desktop applications.



With global certifications including UL, cUL, TUV, CE, and RCM, this adapter is designed for international use. It comes with a 3-year warranty.

GST36B09-P1J Quick Information

Product Type: AC/DC Desktop Adapter
Series: GST36B
Canonical Name: Mean Well GST36B09-P1J AC/DC Desktop Adapter
Subcategory: Desktop Adapter

GST36B09-P1J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GST36B09-P1J Features

  • 28W power output at 9VDC
  • Universal 85-264VAC input range
  • Energy Efficiency Level VI compliant
  • Short circuit, overload, over voltage protection
  • 3-year manufacturer warranty

GST36B09-P1J Applications

  • Suitable for ITE commercial devices
  • Ideal for telecommunication equipment
  • Powers office facilities equipment
  • Used in industrial equipment applications

GST36B09-P1J FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the GST36B09-P1J adapter?

The GST36B09-P1J adapter provides a 9VDC output voltage at a rated current of 3.11A.

What is the power rating of the GST36B09-P1J adapter?

The power rating for the GST36B09-P1J adapter is 28W.

What is the input voltage range for this AC/DC adapter?

The adapter accepts a universal input voltage range of 85 to 264VAC.

What is the energy efficiency level of the GST36B09-P1J?

The adapter meets Energy Efficiency Level VI standards.

What are the operating temperature limits for this adapter?

The operating temperature range for this adapter is -30°C to 70°C.

What type of AC input connector does the GST36B09-P1J use?

It uses an IEC 320-C8 AC input connector.

What protections are included with the GST36B09-P1J adapter?

The adapter includes protections for short circuit, overload, and over voltage.
