| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Rated Current | |
| Region Utilized | |
| Voltage | |
| Width |

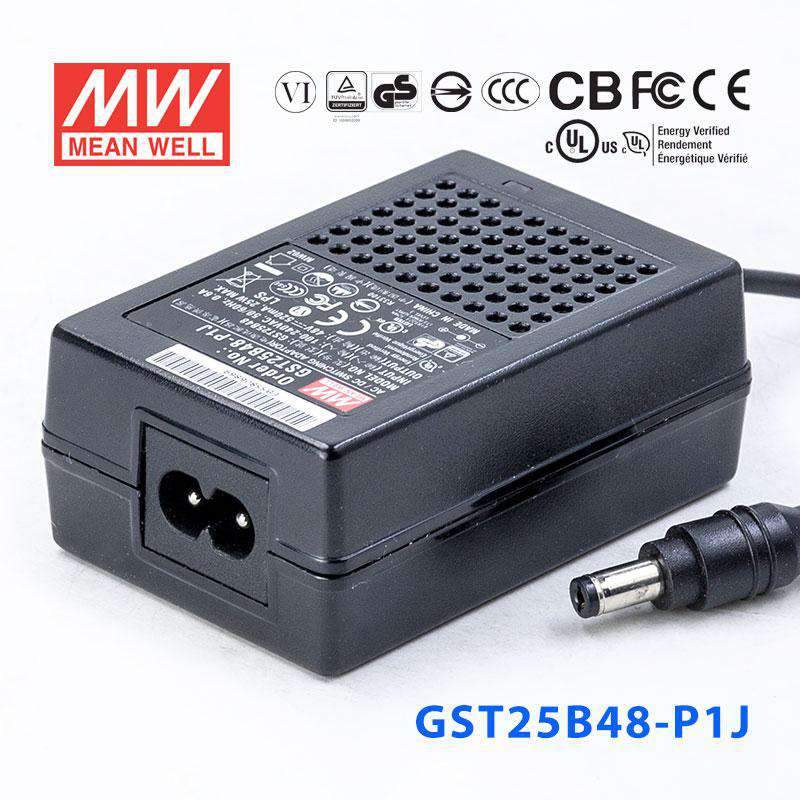

This Mean Well GST25B48-P1J is a 25W AC DC desktop power supply designed for commercial applications. It provides a stable 48V output voltage with a rated current of 0.52A.
The power supply operates within an input voltage range of 85V to 264V and meets Level VI efficiency standards. It is designed for ITE (Commercial) use and features an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
With a compact desktop form factor (Class II), it measures 79.0mm x 54.0mm x 33.0mm. The operating temperature range is -30°C to 70°C. It also boasts a low no-load power consumption of 75mW (Max) and comes with a 3-year warranty. Safety approvals include BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM.
-30°C to 70°C.
48V at 0.52A, 25W.
85 to 264 VAC via IEC 320-C8 inlet.
Yes, it meets Level VI efficiency and has ≤75 mW no load power consumption.
2.1 mm inner diameter x 5.5 mm outer diameter barrel plug with positive center polarity.
Desktop form factor (Class II) measuring 79.0 mm x 54.0 mm x 33.0 mm.
No, the input cord is sold separately.
