| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

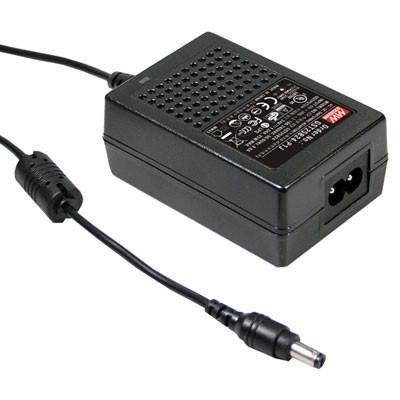

The Mean Well USA GST25B18-P1J is a versatile 25W AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 18V DC output with a maximum current of 1.38A, ensuring reliable power for various devices.
This adapter complies with Level VI energy efficiency standards, minimizing power consumption during operation and standby. It features an input voltage range of 100-240 VAC and utilizes an IEC 320-C8 input connector. The output is delivered via a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization.
With a compact form factor measuring 79.0mm x 54.0mm x 33.0mm, the GST25B18-P1J is suitable for space-constrained environments. It is designed to operate reliably within an ambient temperature range of -30°C to 70°C, making it suitable for a wide array of international applications. The adapter also boasts a low no-load power consumption of 75mW maximum.
The output voltage is 18 VDC.
The adapter is a Desktop (Class II) form factor.
-30°C to 70°C.
100-240 VAC.
25W.
Level VI.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
