| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

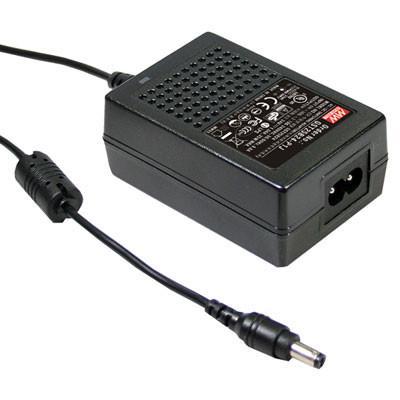

The Mean Well USA GST25B15-P1J is a versatile 25W AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 15VDC output with a current rating of 1.66A, meeting Level VI efficiency standards.
The adapter features an IEC 320-C8 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. Its compact dimensions are 79.0mm x 54.0mm x 33.0mm, making it suitable for various space-constrained designs.
Operating within a wide temperature range of -30°C to 70°C, the GST25B15-P1J is built for reliability in diverse environments. It boasts a low no-load power consumption of 75mW (Max) and supports international voltage input (100-240 VAC).
This adapter is compliant with RoHS3 standards and has an MSL rating of 1. It is approved by multiple agencies including BIS, BSMI, CB, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM, ensuring broad market acceptance.
100-240 VAC
Desktop (Class II) enclosure
-30°C to 70°C
15 VDC
1.66A
Level VI
BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM
