| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

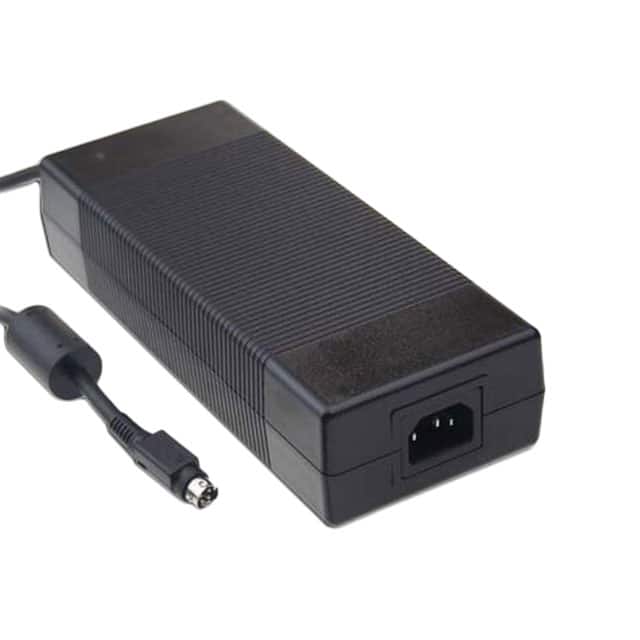

The Mean Well USA GST220A36-R7B is a versatile AC/DC desktop adapter designed for international use. It delivers a stable 36V output with a maximum power of 220W, suitable for various ITE (Commercial) applications.
This adapter meets Level VI efficiency standards, ensuring energy savings and reduced heat generation. It operates reliably across a wide temperature range of -30°C to 70°C, making it suitable for demanding environments. The input connector is a standard IEC 320-C14, and the output is provided via a 4-pin Power DIN connector.
Key specifications include a 6.1A current rating and a low no-load power consumption of 150mW maximum. The physical dimensions are 210.0mm in length, 85.0mm in width, and 46.0mm in height. The input cord is sold separately and has a specified length of 39.4 inches (1.00m).
Compliance is indicated by approval agencies such as BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The GST220A36-R7B provides an output voltage of 36V and a current of 6.1A.
The adapter has a power rating of 220W.
The GST220A36-R7B has an efficiency rating of Level VI.
The adapter can operate in temperatures ranging from -30°C to 70°C.
It features an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
