| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

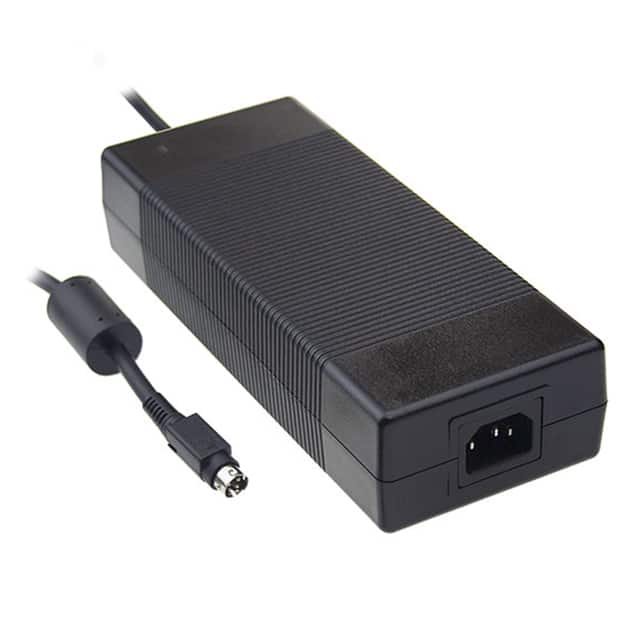

The Mean Well USA GST220A20-R7B is a high-power AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 20VDC output with a maximum current of 11A, providing a total power of 220W.
This adapter features Level VI energy efficiency, ensuring reduced power consumption. It is equipped with an IEC 320-C14 input connector and a 4-pin Power DIN output connector. The device is built to operate reliably in demanding environments, with an operating temperature range of -30°C to 70°C.
Its compact desktop form factor (Class I) and international region utilization make it suitable for global deployments. The adapter includes a 39.4-inch (1.00m) cord. Approval agencies include BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM, indicating compliance with various international safety and performance standards.
The output is 20VDC at 11A.
The input voltage range is 100-240VAC.
It meets Level VI efficiency.
The operating temperature range is -30°C to 70°C.
The input connector is IEC 320-C14 and the output connector is a 4-pin Power DIN.
The dimensions are 210.0mm x 85.0mm x 46.0mm.
