| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

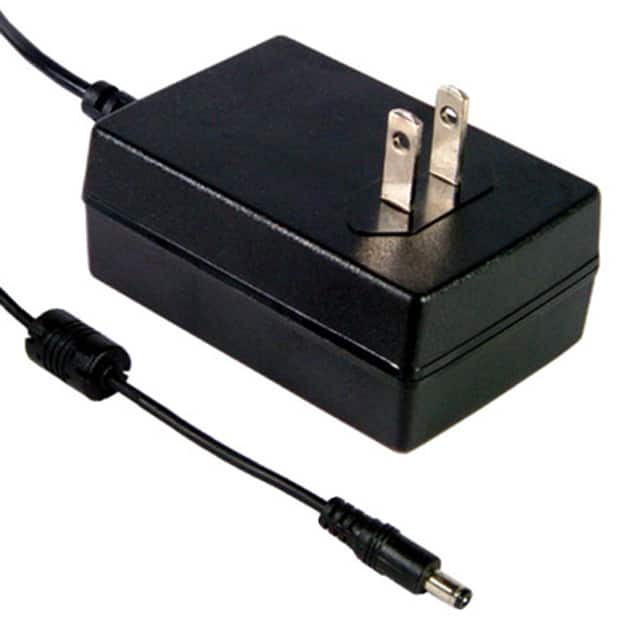

The Mean Well USA GST18U24-P1J is a versatile AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 24VDC output with a maximum current of 750mA, providing a total power of 18W.
This adapter features a NEMA 1-15P input connector and a standard 2.1mm x 5.5mm barrel plug output with a positive center. It operates efficiently, meeting Level VI standards, and has a low no-load power consumption of 75mW maximum. The operating temperature range is from -30°C to 70°C, making it suitable for various environments.
With dimensions of 79.0mm x 54.0mm x 33.0mm, it offers a compact form factor. The adapter includes approvals from BSMI, CB, cULus, and EAC, ensuring compliance with international standards. It is designed for North American regions and features a cord length of 1.80 meters.
The GST18U24-P1J adapter provides a 24VDC output at 750mA.
The adapter has a power rating of 18W.
The GST18U24-P1J adapter meets Level VI efficiency standards.
The adapter can operate in temperatures ranging from -30°C to 70°C.
It features a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output connector.
The GST18U24-P1J is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
