| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

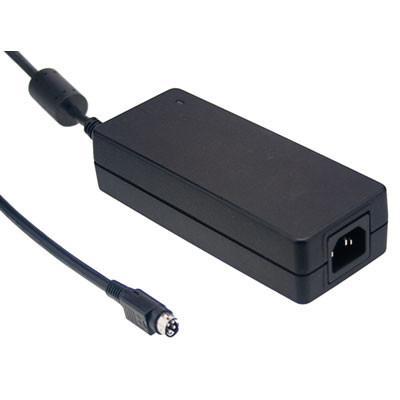

The Mean Well USA GST120A48-R7B is an AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 48V output at up to 120W of power, with a maximum current draw of 2.5A.
This adapter features a Level VI efficiency rating, ensuring energy savings and reduced heat generation. It operates within a wide temperature range of -30°C to 70°C, making it suitable for various environmental conditions. The input connector is a standard IEC 320-C14, and the output is provided via a 4-pin Power DIN connector.
With dimensions of 167.0mm x 67.0mm x 35.0mm, the GST120A48-R7B has a compact desktop form factor. It requires a separate power cord. The adapter also boasts a low no-load power consumption of 150mW (Max).
Key specifications include a 48V output voltage, 120W power rating, and 2.5A current. It is designed for international use and is compliant with RoHS3 standards.
The GST120A48-R7B has an output voltage of 48V and a maximum output current of 2.5A.
The GST120A48-R7B adapter has a power rating of 120W.
The GST120A48-R7B has a Level VI efficiency rating.
The GST120A48-R7B can operate in temperatures ranging from -30°C to 70°C.
The GST120A48-R7B features an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
Yes, the GST120A48-R7B is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the GST120A48-R7B is 1 Unlimited.
