| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

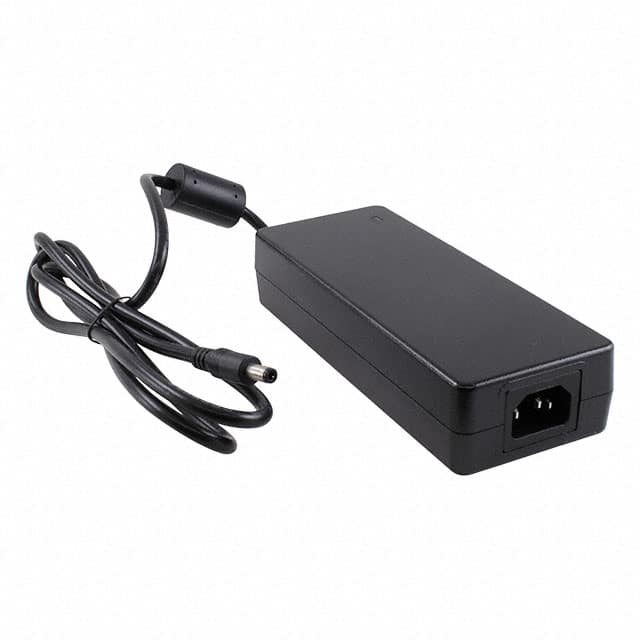

The Mean Well USA GST120A24-P1M is a versatile AC/DC desktop power supply designed for commercial ITE applications. It delivers a stable 24V output with a maximum current of 5A, providing a total output power of 120W.
This power supply operates with a wide input voltage range of 100-240 VAC, making it suitable for international use. It features an IEC 320-C14 input connector and a 2.5mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output with positive center polarization. The unit is designed for efficiency, meeting Level VI standards, and has a low no-load power consumption of 0.15W.
With a compact desktop form factor (Class I), the GST120A24-P1M has dimensions of 167.0mm x 67.0mm x 35.0mm. It is built to withstand operating temperatures ranging from -30°C to 70°C. The power supply requires a separate input cord, with a 1.20m cord length available.
Compliance is ensured through various agency approvals including BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM. It is suitable for applications requiring reliable power delivery in commercial environments.
The output voltage is 24V.
The maximum output current is 5A.
The total output power is 120W.
It uses an IEC 320-C14 input connector.
The dimensions are 167.0mm (Length) x 67.0mm (Width) x 35.0mm (Height).
The operating temperature range is -30°C to 70°C.
It meets Level VI efficiency.
