| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

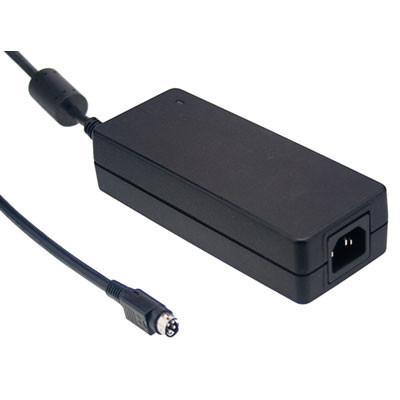

The Mean Well USA GST120A12-R7B is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a current rating of 8.5A, providing a total power of 102W.
This adapter features Level VI efficiency, ensuring optimal power consumption. It operates reliably within a wide temperature range of -30°C to 70°C. The input connector is IEC 320-C14, and the output utilizes a 4-pin Power DIN connector. The form factor is a desktop Class I type, with dimensions of 167.0mm x 67.0mm x 35.0mm.
Compliance is indicated by approval agencies including BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, and SIRIM. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected. The input type requires a cord, which is sold separately, and the cord length is specified as 39.4 inches (1.00m).
The GST120A12-R7B provides a 12V output at 8.5A.
The power rating for this adapter is 102W.
The GST120A12-R7B operates between -30°C and 70°C.
This adapter meets Level VI efficiency standards.
The dimensions are 167.0mm x 67.0mm x 35.0mm.
It features an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
The RoHS status is RoHS3 Compliant.
