| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

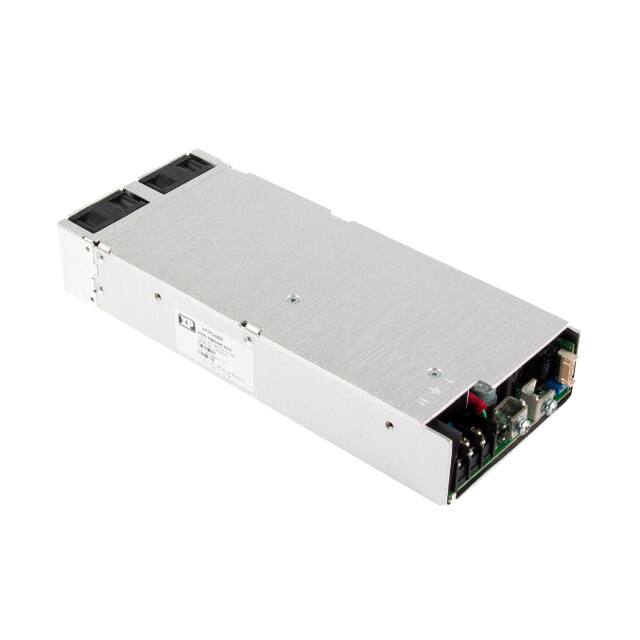

The XP Power GSP750PS24-EF is an enclosed AC/DC power supply designed for ITE (Commercial) and Medical applications. It delivers a nominal output power of 750W with a 24VDC output voltage and a maximum output current of 31.3A.
Key electrical features include a universal 80-264VAC input range, Power Factor Correction (PFC), and a standby output of 5V/3A. The unit operates efficiently with a typical efficiency of 90% at 230VAC full load. It also supports features like adjustable output, load sharing, remote sense, and remote on/off.
With a compact mechanical footprint, the GSP750PS24-EF has dimensions of 254.0mm x 101.6mm x 41.9mm. It is designed for chassis mounting and operates reliably within a wide temperature range of -40°C to 70°C (with derating). The power supply meets various safety and EMC standards, including CB, CE, IEC60601-1, and EN62368-1.
This series offers peak power capability up to 900W for 100ms and includes intelligent fan speed control for reduced acoustic noise. It is suitable for 1U applications and provides 2 x MOPP safety approvals for medical use.
The output voltage is 24 VDC and the nominal output current is 31.3 A.
The operating input voltage range is 80 to 264 VAC, with a fault condition tolerance of 300 VAC for up to 5 seconds.
Yes, it includes a 5V/3A standby output.
The operating temperature range is -40°C to 70°C with derating.
It holds approvals for IEC/EN/UL 62368-1, IEC/EN/ANSI/AAMI ES 60601-1 (2 x MOPP), CSA C22.2 No. 60601-1, and LVD.
Typical efficiency is 90% at 230VAC full load.
The dimensions are 254.0mm x 101.6mm x 41.9mm (10.00" x 4.00" x 1.65").
