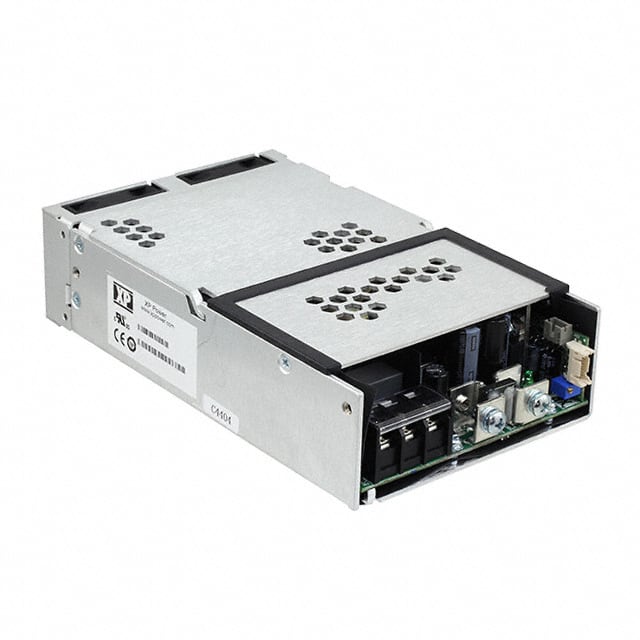

The XP Power GSP500PS12-EF is an enclosed AC-DC power supply from the GSP500 series, designed to deliver 500W of output power with a 12VDC output voltage. It operates with a universal input voltage range of 80-264VAC and offers a peak power capability of up to 650W.
Key features include adjustable output, load sharing, remote on/off, remote sense, and a 5V standby output. The unit is rated for convection or forced cooling and operates within a wide temperature range of -40°C to +70°C (with derating). Its dimensions are 170.4mm x 101.6mm x 41.9mm.
This power supply is approved for both IT and medical applications, meeting standards such as IEC60950-1, IEC62368-1, and IEC60601-1. It also complies with EMC standards EN55011/32. The chassis mount type makes it suitable for integration into various systems.
It offers high efficiency up to 90% at 230VAC full load and has a low no-load input power of 0.5W when the inhibit is activated. The unit comes with a 3-year warranty.
80-264VAC (derate below 90VAC).
-40°C to 70°C with derating.
12VDC.
500W nominal, 650W peak.
IEC60950-1, IEC62368-1, IEC60601-1, UL62368-1, CSA62368-1, ANSI/AAMI ES60601-1, EN62368-1, EN60601-1, LVD & RoHS, Equipment Protection Class I.
Enclosed, chassis mount.
90% typical at 230VAC full load.
