| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination | |
| Termination Style | |
| Voltage Rating |

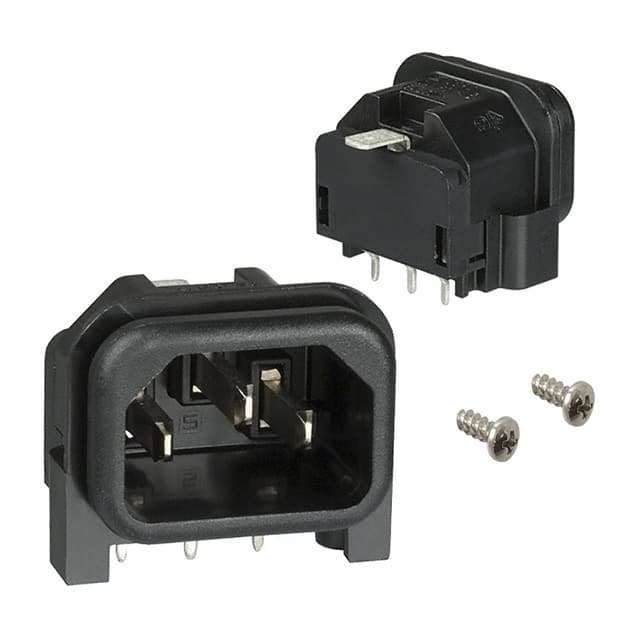

The GSP2.9113.13 is a power entry module from Schurter Inc. featuring an IEC 320-C14 connector style. It is an unfiltered commercial grade receptacle with male blades, designed for panel mount installation using a flange and through-hole right angle solder or quick connect (0.189" / 4.8mm) termination. The module is rated for 10A at 250VAC and offers IP40 ingress protection. Its panel cutout requirement is rectangular 30.30mm x 22.50mm, and it accommodates panel thickness up to 0.059" (1.50mm). The housing material meets UL94 V-0 flammability rating. The component is approved by CCC, cURus, and ENEC. A terminating cover is included as a feature. This power entry connector is suitable for use in a variety of commercial electronic equipment requiring a standard IEC inlet.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.65 | $5.65 |
| 10+ | $4.81 | $4.81 |
| 25+ | $4.51 | $4.51 |
| 50+ | $4.28 | $4.28 |
| 100+ | $4.08 | $4.08 |
| 250+ | $3.82 | $3.82 |
| 500+ | $3.64 | $3.64 |
| 1,000+ | $3.47 | $3.47 |
| 2,500+ | $3.34 | $3.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector style is IEC 320-C14.
The current rating is 10 A.
The voltage rating is 250 VAC.
The connector has 3 positions.
The mounting type is panel mount with flange and through-hole, right angle.
The ingress protection rating is IP40.
Approvals include CCC, cURus, and ENEC.
