| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination | |
| Voltage Rating |

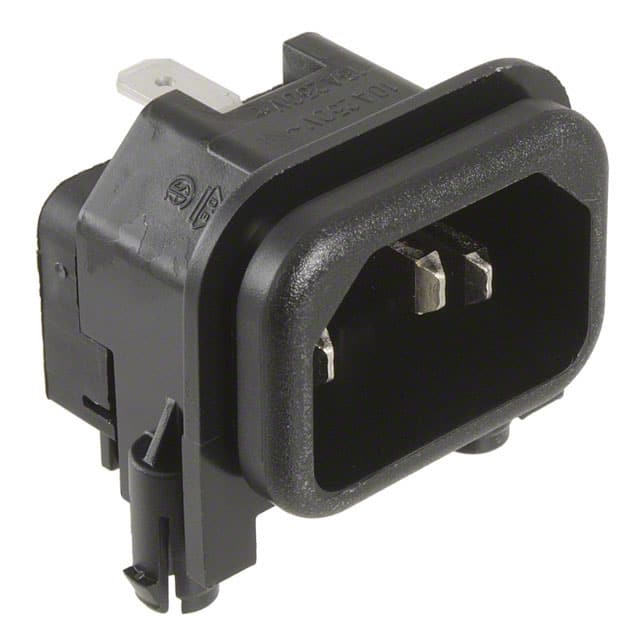

The Schurter GSP2.8201.15 is an IEC 320-C14 power entry module designed for panel mount applications. It features a male blade receptacle with 3 positions and accepts a maximum current of 10A at 250VAC per IEC standards, or 15A at 250VAC per UL/CSA standards. The module is unfiltered and suitable for commercial equipment requiring a compact inlet solution.
Mechanically, it mounts via snap-in or screw-on methods onto a panel with a rectangular cutout of 30.30mm x 22.50mm. The panel thickness can range from 1.5mm to 3mm. Termination options include solder and quick connect tabs (0.189" or 4.8mm), providing flexibility for assembly. The housing is made of thermoplastic with UL94 V-0 flammability rating, ensuring fire safety.
Environmental ratings include IP40 protection on the front side and an operating temperature range of -25°C to 70°C. The module is approved by multiple agencies: VDE, UL, CCC, and also carries cURus and ENEC marks as per datasheet and database records. It is RoHS and REACH compliant (unverified). This component is commonly used in power supplies, industrial controls, and networking equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.15 | $3.15 |
| 50+ | $2.85 | $2.85 |
| 100+ | $2.62 | $2.62 |
| 250+ | $2.50 | $2.50 |
| 500+ | $2.40 | $2.40 |
| 1,000+ | $2.27 | $2.27 |
| 5,000+ | $2.15 | $2.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10A at 250VAC per IEC, or 15A at 250VAC per UL/CSA.
250VAC.
3 positions.
Panel mount, snap-in; through hole, right angle.
-25°C to 70°C.
It carries approvals from VDE, UL, CCC, cURus, and ENEC.
No, it is an unfiltered commercial type.
