| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Connector Type | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination Style | |
| Voltage Rating |

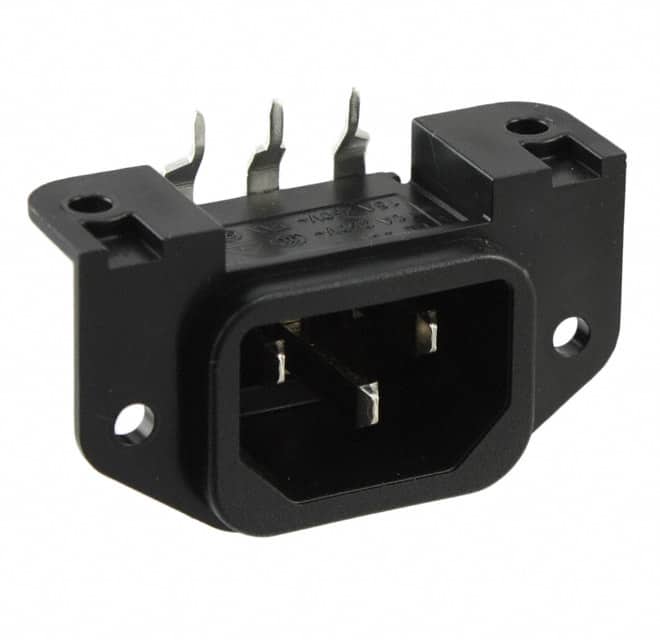

The Schurter GSP1.8113.1 is an IEC 60320-1 C14 appliance inlet designed for panel mount with screw-on rear-side mounting. It is rated 10A at 250VAC per IEC and 15A at 250VAC per UL/CSA, with a dielectric strength exceeding 3kVAC between line-neutral and line/neutral to ground.
This inlet features PCB terminals with a quick-connect ground terminal (4.8 x 0.8 mm) and is suitable for protection class I or II appliances according to IEC 61140. The thermoplastic housing is rated UL94 V-0 for flammability, and the front side achieves IP40 ingress protection per IEC 60529.
Operating temperature range is -25°C to 70°C with a pin temperature rating of 70°C. The panel thickness for screw mounting is 3mm maximum. The part carries multiple approvals including CCC, cURus, ENEC, VDE, and UL, making it suitable for global applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.55 | $3.55 |
| 10+ | $2.83 | $2.83 |
| 50+ | $2.69 | $2.69 |
| 100+ | $2.56 | $2.56 |
| 250+ | $2.40 | $2.40 |
| 500+ | $2.29 | $2.29 |
| 1,000+ | $2.18 | $2.18 |
| 2,500+ | $2.04 | $2.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A per IEC and 15 A per UL/CSA at 250 VAC.
250 VAC.
Panel mount, screw-on rear side.
>3 kVAC between L-N and L/N-PE at 50 Hz for one minute.
-25°C to 70°C.
IP40 on the front side per IEC 60529.
CCC, cURus, ENEC, VDE, UL.
