| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Current Rating (Nominal @ IEC) | |
| Current Rating (Nominal @ UL/CSA) | |
| Dielectric Strength | |
| Filter Type | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| SVHC Present | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage Rating |

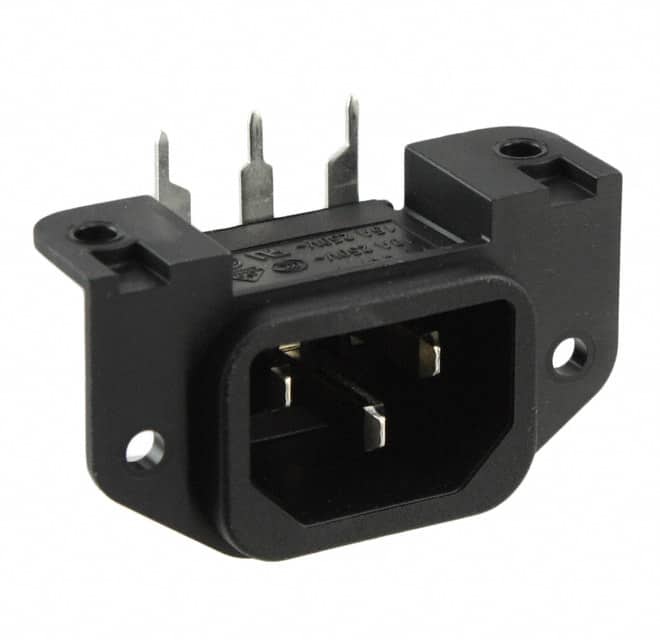

The Schurter GSP1.8101.1 is a commercial-grade unfiltered IEC 320-C14 appliance inlet designed for panel mount applications. It accepts male blades and provides 3 positions with a current rating of 10A at 250VAC (IEC) and 15A at 250VAC (UL/CSA). The connector features a black thermoplastic housing with UL94 V-0 flammability rating and IP40 front-side ingress protection.
This power entry module is suitable for protection class I or II equipment and offers a dielectric strength greater than 3 kVAC between L-N and L/N-PE. The operating temperature range is -25°C to 70°C. Mounting is via a panel flange with through-hole right-angle solder terminals, requiring a rectangular panel cutout of 30.30mm x 22.50mm and accepting a maximum panel thickness of 3mm.
The GSP1.8101.1 carries approvals from CCC, cURus, and ENEC. It does not accommodate a fuse. The part is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.12 | $2.12 |
| 50+ | $2.00 | $2.00 |
| 100+ | $1.91 | $1.91 |
| 250+ | $1.79 | $1.79 |
| 500+ | $1.70 | $1.70 |
| 1,000+ | $1.62 | $1.62 |
| 2,500+ | $1.54 | $1.54 |
| 5,000+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IEC rating is 10A at 250VAC, 50Hz. The UL/CSA rating is 15A at 250VAC, 60Hz.
250 VAC.
Panel mount with flange and through-hole right-angle solder terminals.
-25°C to 70°C.
No, it does not accommodate a fuse.
CCC, cURus, and ENEC.
