| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

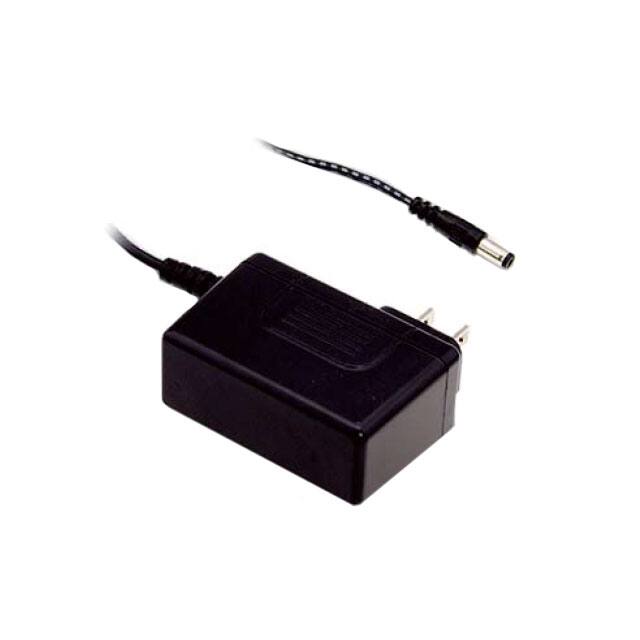

The Mean Well USA GSM60U12-P1J is a 54W AC/DC wall mount adapter designed for reliable power delivery. It operates with a 12V output voltage and can supply up to 4.5A of current.
The adapter utilizes a NEMA 1-15P input connector for standard North American power connections. The output is provided via a common barrel plug with dimensions of 2.1mm inner diameter and 5.5mm outer diameter, featuring a positive center polarization. Its compact dimensions are 75.5mm in length, 32.0mm in width, and 47.5mm in height, with a cord length of 1.00 meter.
This adapter is suitable for medical applications and operates within a temperature range of -30°C to 70°C. It has achieved CB, FCC, and UR approval agency certifications, indicating compliance with various safety and performance standards for use in North America.
The output voltage is 12V.
The maximum power output is 54W.
The maximum current output is 4.5A.
It uses a NEMA 1-15P input connector.
The output barrel plug has a 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The operating temperature range is -30°C to 70°C.
This adapter is designed for medical applications.
