| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight |

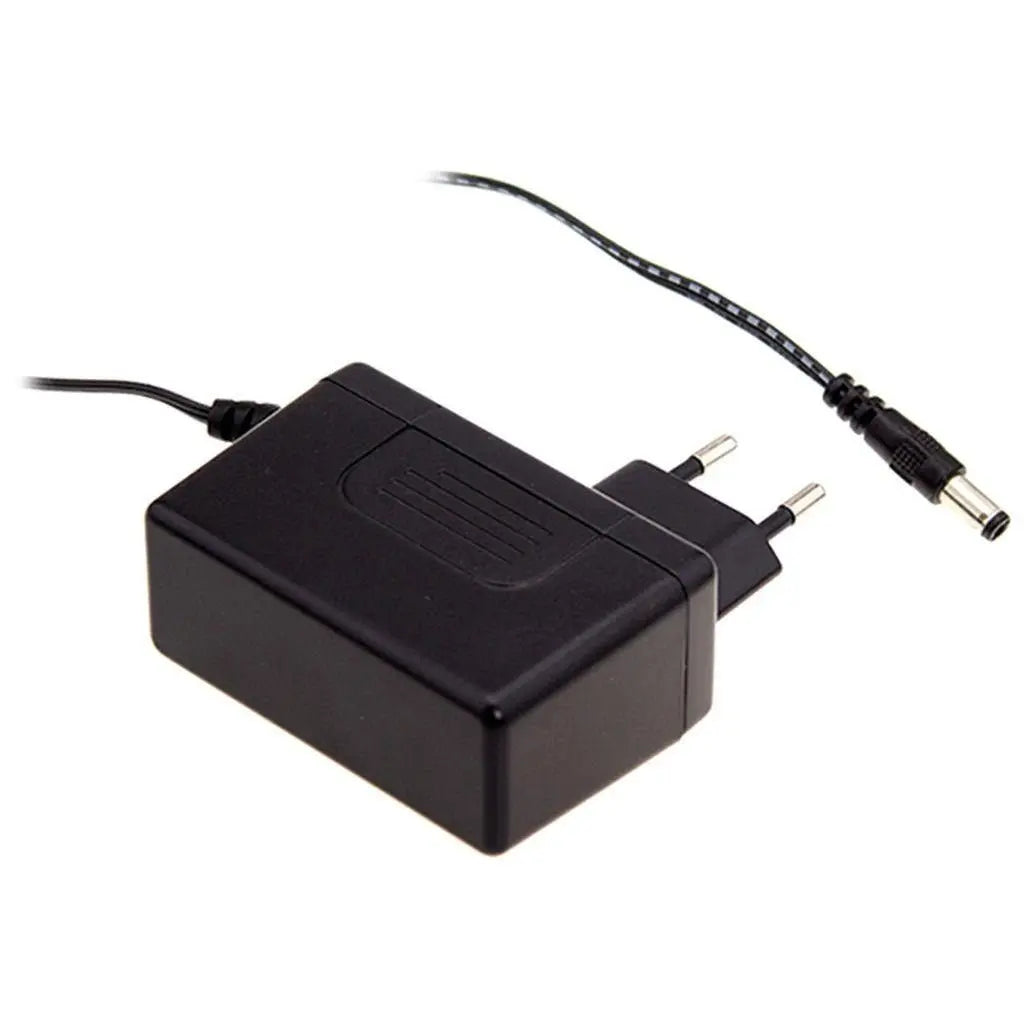

The Mean Well USA GSM60E12-P1J is a 54W AC/DC wall mount adapter with a 12V output and 4.5A rated current. Designed for versatility, it accepts an input voltage range of 80V~264V AC and features a fixed blade input connector.
This adapter is suitable for medical applications, boasting medical safety approvals according to BS EN/EN60601-1 and BS EN/EN60601-1-11 standards. It operates efficiently with an 88% efficiency rating and has a low no-load power consumption of less than 0.15W. The unit is built to withstand a wide operating temperature range from -30°C to 70°C.
Key features include protections against short circuit, overload, over voltage, and over temperature. The dimensions are 75.5mm x 32.0mm x 47.5mm, with a weight of 0.44 lbs. It utilizes a 2-pole EURO plug and a Class II power unit design, with an output connector specified as a Barrel Plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The cord length is 1.00m.
Compliance includes TUV, CB, CE, EAC approval agencies, and adherence to EMC standards such as EN55011 class B and FCC part 15 class B. The energy efficiency level is rated VI.
The GSM60E12-P1J provides a 12V output at 4.5A.
The input voltage range is 80V to 264V AC or 113V to 370V DC.
The operating temperature range is -30°C to 70°C.
It is approved to TUV BS EN/EN60601-1 and BS EN/EN60601-1-11 medical safety standards, and EAC TP TC 004.
It uses a barrel plug with 2.1mm ID x 5.5mm OD x 11.0mm, positive center polarity.
The typical efficiency is 88% and it meets Level VI energy efficiency standards.
