| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Cord | |
| Input Cord Length | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Connector Polarization | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

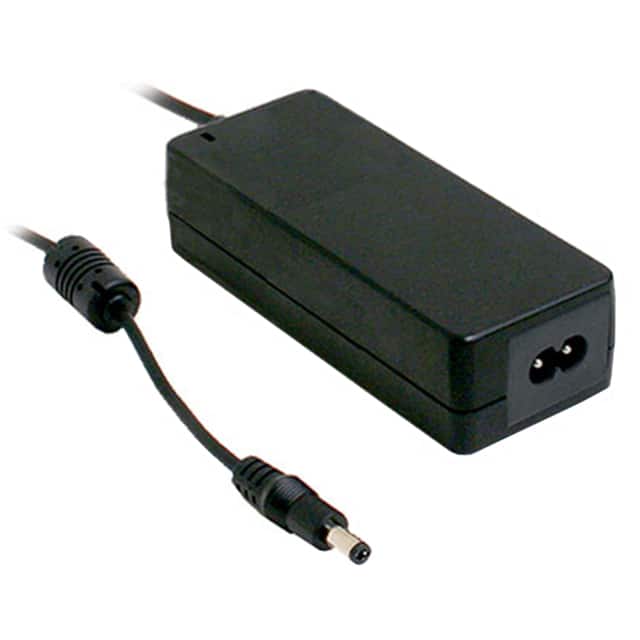

The Mean Well USA GSM40B15-P1J is a 40W AC/DC desktop power supply designed for international use. It provides a stable 15V output voltage with a maximum current of 2.67A, delivering a total of 40W of power.
This adapter meets Level VI efficiency standards, ensuring minimal energy waste, and has a low no-load power consumption of 0.1W. The input connector is an IEC 320-C8, and the output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization. The input cord is sold separately and is typically 1.50m long.
Designed with a compact desktop (Class II) form factor, its dimensions are 125.0mm in length, 60.0mm in width, and 32.0mm in height. It is suitable for a wide operating temperature range of -30°C to 70°C.
Key approvals include CB, CE, cURus, and TUV, indicating compliance with various international safety standards. This power supply is particularly suited for medical applications.
The output voltage is 15V.
The maximum output current is 2.67A.
The total output power is 40W.
It uses an IEC 320-C8 input connector.
The dimensions are 125.0mm in length, 60.0mm in width, and 32.0mm in height.
The operating temperature range is -30°C to 70°C.
It meets Level VI efficiency.
