| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

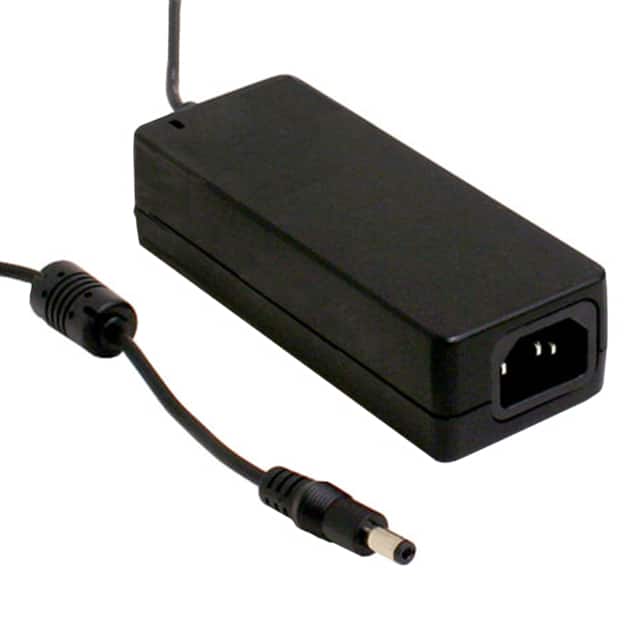

The Mean Well USA GSM40A12-P1J is an AC/DC desktop power supply designed for various applications, including medical devices. It delivers a stable 12V output voltage with a maximum output current of 3.34A, providing a total output power of 40W.
This power supply meets the Level VI energy efficiency standard, ensuring reduced power consumption during operation and standby. It features an input voltage range suitable for international use and utilizes an IEC 320-C14 input connector. The output is delivered through a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization.
Constructed in a desktop form factor (Class I), the GSM40A12-P1J has a compact mechanical design with dimensions of 125.0mm in length, 50.0mm in width, and 31.5mm in height. It is rated for operation in temperatures ranging from -30°C to 70°C. The device also boasts a low no-load power consumption of 100mW maximum.
Compliance is indicated by approvals from CB, CE, cURus, and TUV agencies, underscoring its suitability for a wide range of global markets. The input type requires a cord, which is sold separately.
The output voltage is 12V.
The output current is 3.34A.
The output power is 40W.
It uses an IEC 320-C14 input connector.
The output connector is a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The polarization is Positive Center.
The efficiency is Level VI.
