| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

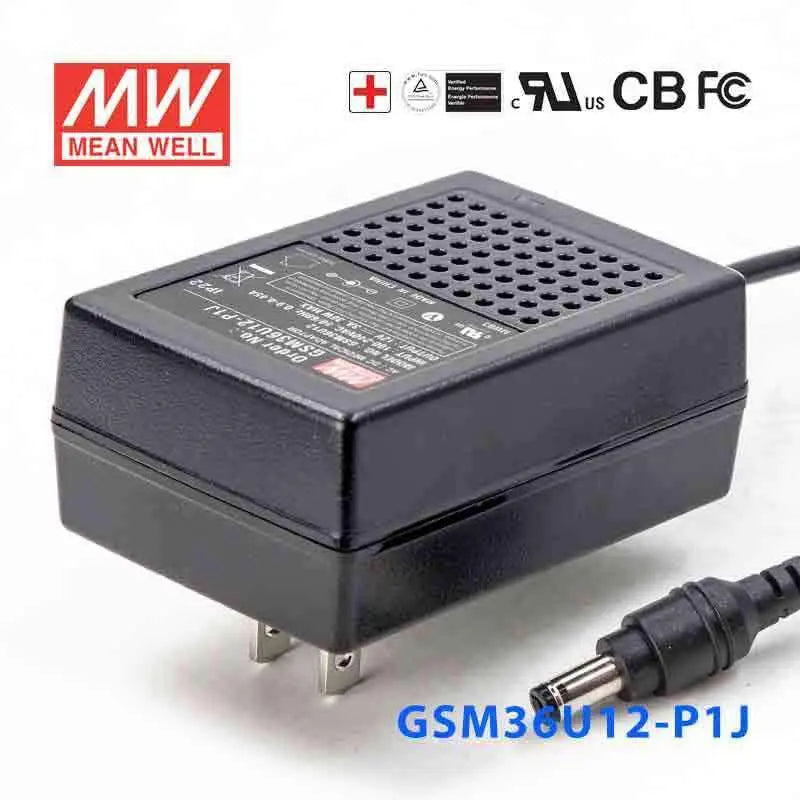

The Mean Well USA GSM36U12-P1J is an AC/DC wall mount adapter designed for reliable power conversion. It delivers a stable 12V output with a maximum current of 3A, providing a total power of 36W.
This adapter features Level VI efficiency, ensuring optimal energy usage. Its input connector is a NEMA 1-15P, suitable for North American regions, and it utilizes a fixed blade input type. The output is delivered via a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, featuring positive center polarization.
Designed for demanding environments, the GSM36U12-P1J operates within a temperature range of -25°C to 60°C. Its compact dimensions measure 79.0mm in length, 54.0mm in width, and 33.0mm in height. The cord length is 1.80 meters (70.9 inches).
This model is approved by CB, cRUus, and TUV, and is suitable for medical applications. It also boasts a low no-load power consumption of 100mW maximum.
The adapter provides a 12V output at 3A.
The adapter has a power rating of 36W.
The adapter can operate between -25°C and 60°C.
Yes, it meets Level VI efficiency standards.
It uses a NEMA 1-15P input connector.
The dimensions are 79.0mm x 54.0mm x 33.0mm.
Yes, it is approved for medical applications.
