| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

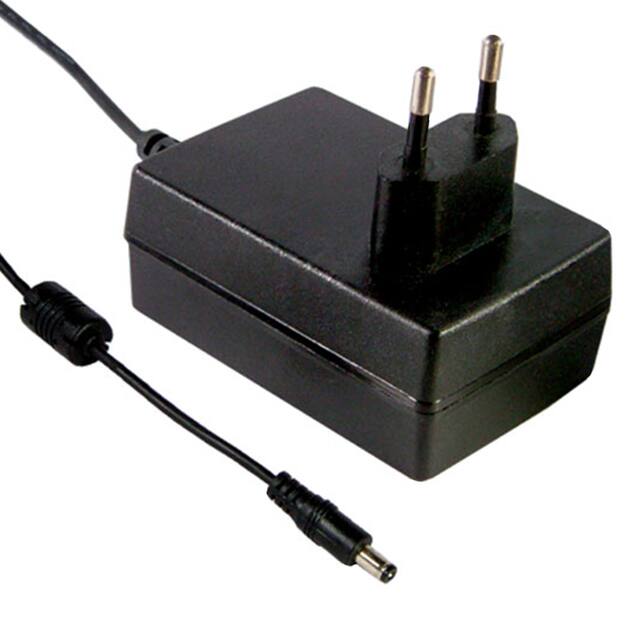

The Mean Well USA GSM36E15-P1J is a 36W AC/DC power adapter designed for wall mounting. It operates with an input voltage range of 100-240 VAC and provides a stable output of 15V at 2.4A, delivering a total power of 36W.
This adapter meets Level VI efficiency standards, ensuring reduced energy consumption. Its no-load power consumption is a maximum of 100mW. The operating temperature range is from -25°C to 60°C, making it suitable for various environments.
Mechanical specifications include a length of 79.0mm, width of 54.0mm, and height of 33.0mm. It features a CEE 7/16 input connector and a standard 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output with positive center polarization. The integrated cord is 1.80 meters long.
Designed for European regions, this adapter is suitable for medical applications. It is a Class II wall mount device.
The GSM36E15-P1J provides an output voltage of 15V and an output current of 2.4A.
The total power output of the GSM36E15-P1J is 36W.
The GSM36E15-P1J has an efficiency rating of Level VI.
The adapter can operate in temperatures ranging from -25°C to 60°C.
It features a CEE 7/16 input connector and a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output with positive center polarization.
The cord length is 1.80 meters.
The dimensions are 79.0mm in length, 54.0mm in width, and 33.0mm in height.
