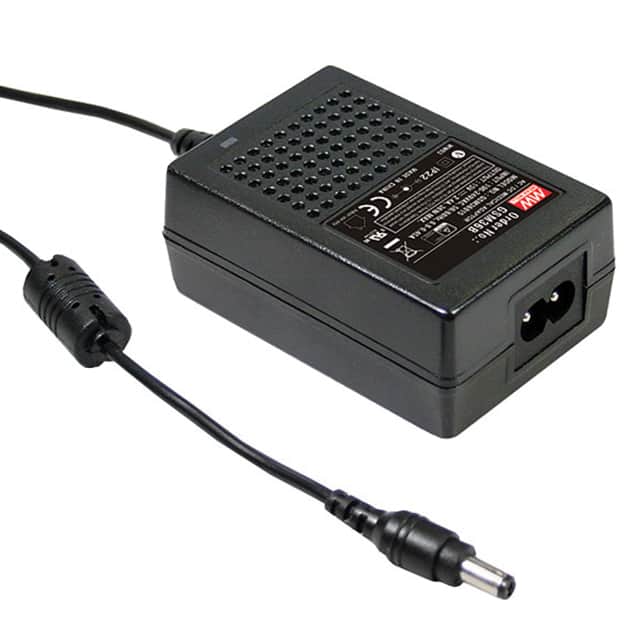

The Mean Well USA GSM36B05-P1J is a compact AC/DC desktop power adapter delivering a stable 5VDC output with a maximum power of 23W. Designed for versatility, it supports international voltage input ranges from 100-240 VAC.
This adapter features an IEC 320-C8 input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output with positive center polarization. Its dimensions are 79.0mm in length, 54.0mm in width, and 33.0mm in height, with a cord length of 1.20 meters.
With an efficiency rating of Level V and a low no-load power consumption of 100mW, the GSM36B05-P1J is an energy-efficient solution. It is built to operate within a wide temperature range of -25°C to 60°C, making it suitable for various environmental conditions. The adapter is certified by CB, CE, cRUus, and TUV, and is specifically noted for its suitability in medical applications.
The Mean Well USA GSM36B05-P1J provides a 5 VDC output voltage and a maximum power of 23 W.
The adapter is designed for international use and accepts an input voltage range of 100-240 VAC.
It features an IEC 320-C8 input connector and a barrel plug with a 2.1mm I.D. x 5.5mm O.D. and positive center polarization for output.
The GSM36B05-P1J can operate in temperatures ranging from -25°C to 60°C.
The adapter measures 79.0mm in length, 54.0mm in width, and 33.0mm in height.
The power adapter meets Level V efficiency standards.
The no-load power consumption is a maximum of 100mW.
