| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

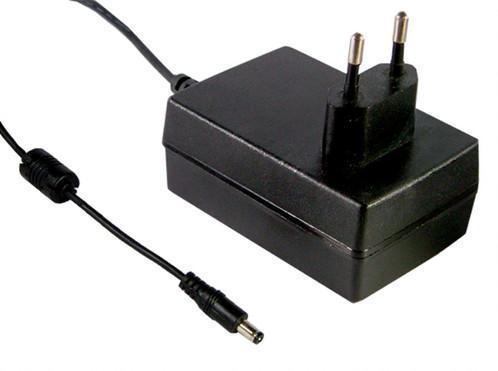

The Mean Well USA GSM25E09-P1J is a versatile AC/DC wall mount adapter designed for various applications, including medical use. It provides a stable 9V output at 25W, with an input voltage range of 100-240 VAC and a fixed blade input connector.
This adapter meets Level V efficiency standards and operates within a temperature range of -25°C to 60°C. It features a compact design with dimensions of 79.0mm x 54.0mm x 33.0mm and a convenient 47.2" (1.20m) cord length. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
Compliance includes RoHS3, MSL Level 1, and REACH Unaffected status. Approval agencies such as CB, CE, and TUV have certified this model, ensuring reliability and safety for its intended use.
The input voltage range is 100-240 VAC.
The output voltage is 9V DC.
The maximum output current is 2.77A.
The output power is 25W.
It meets Level V efficiency.
The operating temperature range is -25°C to 60°C.
It is a wall mount (Class II) adapter.
