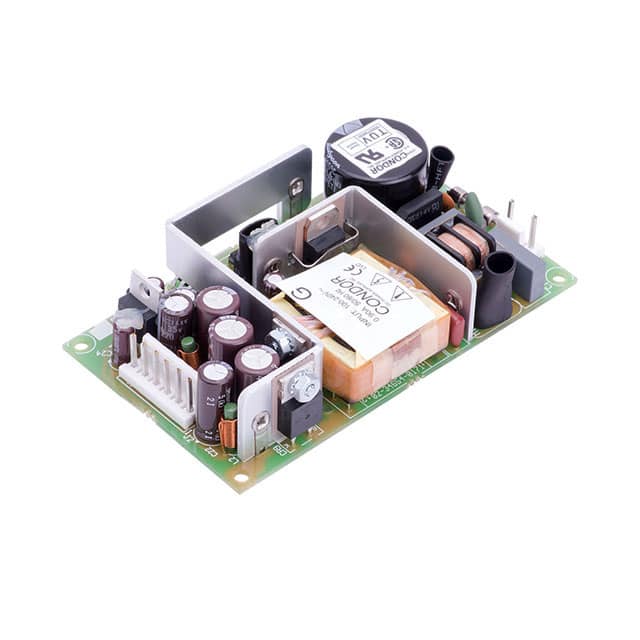

The GSM25A from SL Power Electronics is a 25-watt open-frame AC/DC converter suitable for medical applications. It operates with a universal input voltage range of 90-264 VAC and provides three outputs: 5.1V at 2.5A, 12V at 1.5A, and -12V at 200mA.
This converter boasts an efficiency of 70% and is designed with features like adjustable output and universal input. Its compact dimensions of 4.25" L x 2.50" W x 0.86" H make it suitable for chassis mounting. The operating temperature range is 0°C to 70°C with derating.
Compliance includes CE, cURus, and TUV approvals, along with meeting EMI standards such as FCC Class B and CISPR 22 Class B for commercial models and CISPR 11 Class B for medical models. Overvoltage protection is standard, and it is fully protected against short circuit and overload conditions.
The GSM25A converter has a normal continuous output power of 25W and a peak output power of 28W for a maximum duration of 60 seconds.
The GSM25A provides three output voltages: 5.1V at 2.5A, 12V at 1.5A, and -12V at 200mA.
The GSM25A accepts a universal input voltage range of 90-264 VAC at 47-63 Hz.
The GSM25A operates within a temperature range of 0°C to 70°C, with derating applied.
Yes, the GSM25A is medically approved to UL2601-1, IEC60601-1, EN60601-1, and CSA-C22.2 No. 601-1 standards.
