| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

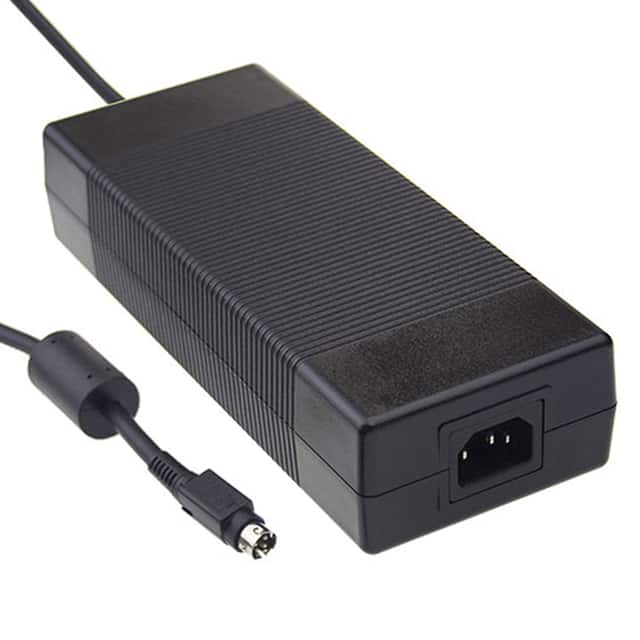

The Mean Well USA GSM220A15-R7B is a desktop AC/DC power adapter designed for reliable power conversion. It provides a stable output voltage of 15V and a maximum output power of 201W, making it suitable for a variety of electronic devices.
This adapter meets the Level VI energy efficiency standard, ensuring minimal power consumption during operation, especially at no load where it consumes a maximum of 150mW. The input voltage range is broad, accepting 100-240 VAC, and it utilizes an IEC 320-C14 input connector for easy connection.
Mechanically, the unit has dimensions of 210.0mm in length, 85.0mm in width, and 46.0mm in height. It is designed for operation within an ambient temperature range of -30°C to 70°C. The output is delivered through a 4-pin Power DIN connector.
This power supply is classified as Class I and is suitable for desktop applications requiring a robust and efficient power source.
The output voltage is 15 V.
The output current is 13.4 A.
The power output is 201 W.
It has an efficiency rating of Level VI.
The no-load power consumption is a maximum of 150mW.
The operating temperature range is -30°C to 70°C.
It uses an IEC 320-C14 input connector.
