| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Approvals | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

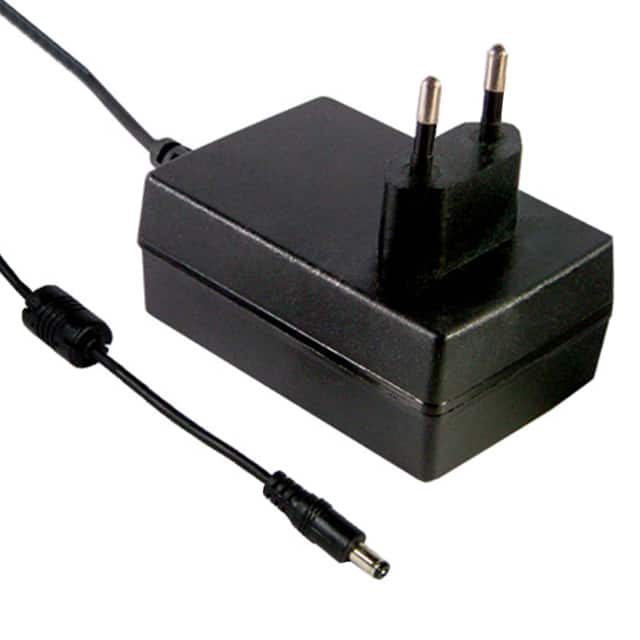

The Mean Well USA GSM18E18-P1J is an 18W AC/DC external wall mount adapter designed for reliable power conversion. It delivers a stable 18V output at a maximum current of 1A, with a total power capacity of 18W. This adapter meets Level VI efficiency standards, ensuring energy-conscious operation.
The input voltage range is broad, accepting 80 to 264 VAC, making it suitable for global use, particularly in Europe where it is utilized. The adapter features a CEE 7/16 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11mm) with positive center polarization.
Designed with medical applications in mind, the GSM18E18-P1J operates within an ambient temperature range of -25°C to 60°C. Its compact dimensions are 79.0mm x 54.0mm x 33.0mm. The adapter includes a 1.80m cord length and has a maximum no-load power consumption of 100mW.
The GSM18E18-P1J provides an 18V output voltage at a maximum current of 1A.
The input voltage range is 80 to 264 VAC.
The adapter has a power rating of 18W.
It meets Level VI efficiency standards.
The dimensions are 79.0mm x 54.0mm x 33.0mm.
The operating temperature range is -25°C to 60°C.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
