| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

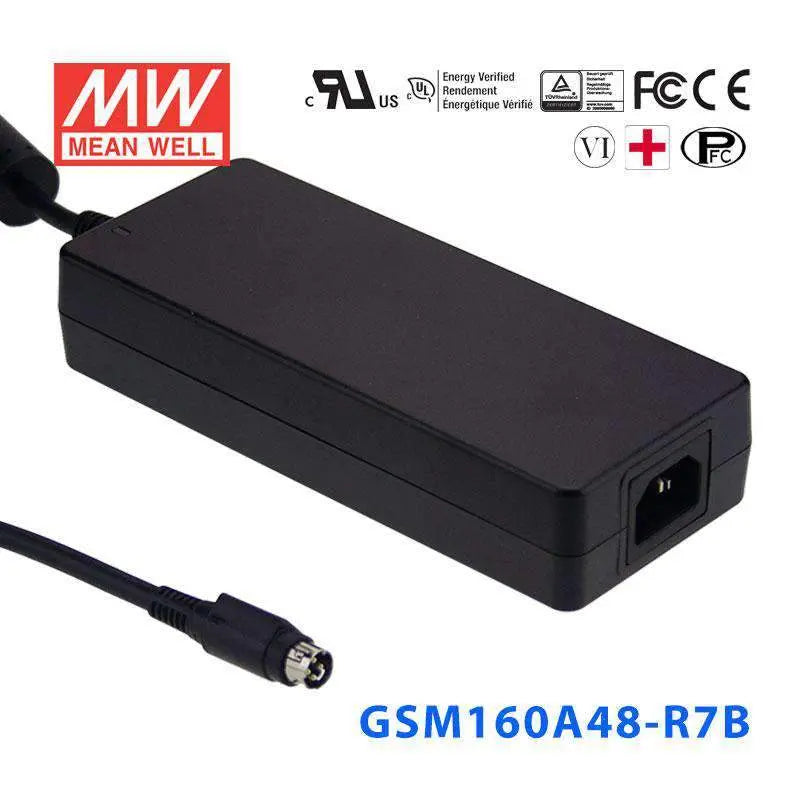

The Mean Well GSM160A48-R7B is a highly reliable 160W desktop-style single-output AC/DC medical adapter. It features a universal AC input range from 80VAC to 264VAC and provides a stable 48VDC output at 3.34A. This adapter is designed for medical applications, meeting international medical safety standards (2xMOPP) with an ultra-low leakage current of less than 100uA.
With an efficiency of up to 94% and extremely low no-load power consumption below 0.15W, the GSM160A series complies with Energy Efficiency Level VI and meets Code of Conduct Version 5. It operates within a wide temperature range of -30°C to +70°C and includes protections for short circuit, overload, over voltage, and over temperature. The adapter utilizes a 3-pole AC inlet (IEC320-C14) and is housed in a fully enclosed plastic case with an LED indicator for power status.
Key features include its medical safety approval, low leakage current, and high efficiency. The dimensions are 175.0mm x 72.0mm x 35.0mm. It is suitable for various medical electrical devices such as mobile clinical workstations, portable hemodialysis machines, and breathing machines.
The input voltage range is 80VAC to 264VAC.
It comes in a fully enclosed plastic case.
It operates from -30°C to 70°C.
Output voltage is 48VDC at 3.34A, providing 160W.
Efficiency is up to 94%.
Lifetime is greater than 85,000 hours.
Dimensions are 175.0mm x 72.0mm x 35.0mm (6.89" x 2.83" x 1.38").
