| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Power | |
| Power (Watts) | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

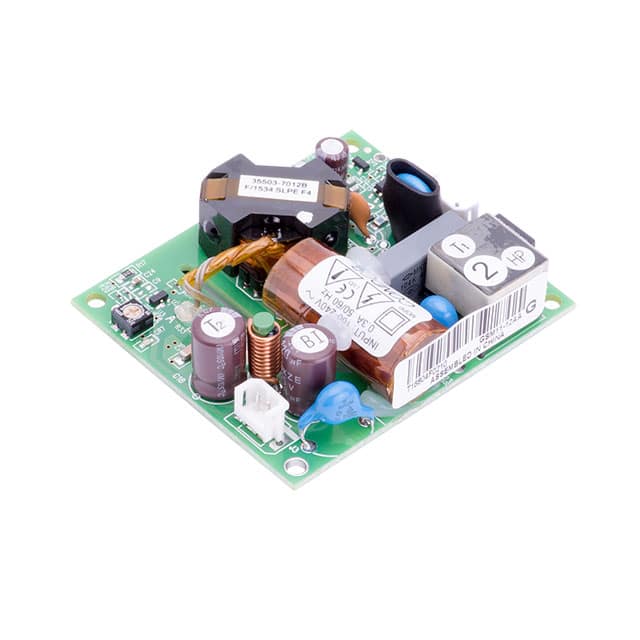

The GSM11-12AAG is a compact 11W AC/DC converter from SL Power Electronics, part of the GSM11 medical series. It delivers a single regulated 12V output at 0.92A from a universal input range of 85-264 VAC (100-240 VAC nominal). Typical efficiency is 77% with a switching frequency of 80 kHz. The output features ripple and noise of 120 mV, load regulation of 2%, and transient response with 5% max deviation and 1 ms recovery.
This open frame power supply is chassis mountable, measuring 57.9 x 50.8 x 14.3 mm and weighing 50 g. It operates from 0°C to 70°C with derating to 50% above 50°C, and can withstand non-operating temperatures from -40°C to +85°C. Humidity range is 5% to 95% RH non-condensing. The unit is rated for operating altitude up to 10,000 ft and meets MIL-STD-810E shock standards.
Protection features include overvoltage protection (110-155%) and short circuit protection (135% ±20% power cycling). Input surge current is limited to 35 A max. The GSM11-12AAG holds safety approvals UL/EN/IEC 60601-1 and 60950-1, with CSA22.2 No.601 and 60950-1. EMC compliance includes EN55011 Level B conducted and Level A radiated emissions, plus various EN61000 immunity standards. It is RoHS3 compliant.
12V.
85-264 VAC.
0°C to 70°C with derating to 50% above 50°C.
Yes, RoHS3 compliant.
Open frame.
UL/EN/IEC 60601-1, CSA22.2 No.601, UL/EN/IEC 60950-1, CSA22.2 No.60950-1.
0.92A.
