| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

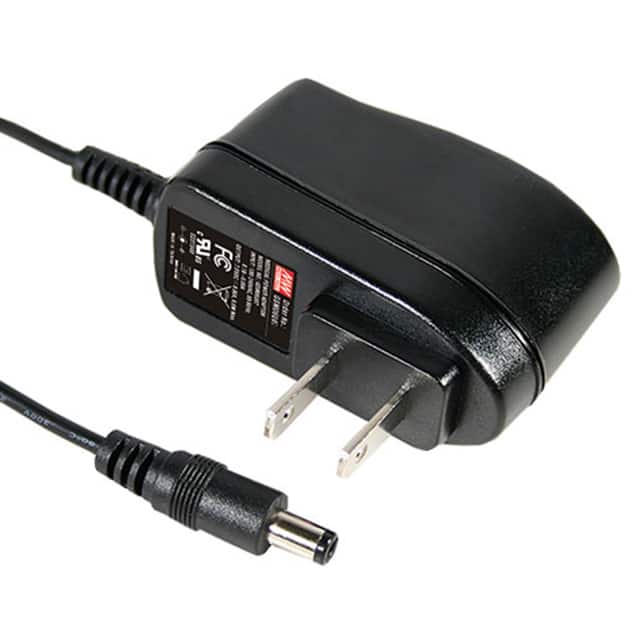

The Mean Well USA GSM06U09-P1J is a reliable 6W AC/DC wall-mount style adapter designed for medical applications. It operates with a universal AC input range of 85-264VAC and provides a stable 9VDC output.
This adapter meets international medical safety standards (2 x MOPP) according to ANSI/AAMI ES60601-1-11, ensuring safety for patient contact applications. It features an ultra-low leakage current of less than 50uA and a no-load power consumption below 0.3W, contributing to energy efficiency.
Designed as a Class II power unit with a fully enclosed plastic case, it offers double insulation for protection against electrical shock. The NEMA 1-15P input connector and a standard 2.1mm x 5.5mm barrel plug output make it suitable for various medical devices such as blood glucose meters, blood pressure monitors, and nebulizers.
Key specifications include a 6W power rating, 0.66A output current, and an efficiency of up to 82%. It operates within a temperature range of 0°C to 50°C and includes protections for short circuit, overload, and over voltage.
The GSM06U09-P1J provides a 9VDC output voltage at 0.66A.
The power rating for this adapter is 6W.
The adapter accepts a universal AC input voltage range of 85-264 VAC.
The dimensions are 66.0mm x 32.0mm x 48.0mm.
The operating temperature range is 0°C to 50°C.
Yes, it is medical safety approved according to 2 x MOPP and ANSI/AAMI ES60601-1-11.
It uses a standard barrel plug with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm size.
