| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

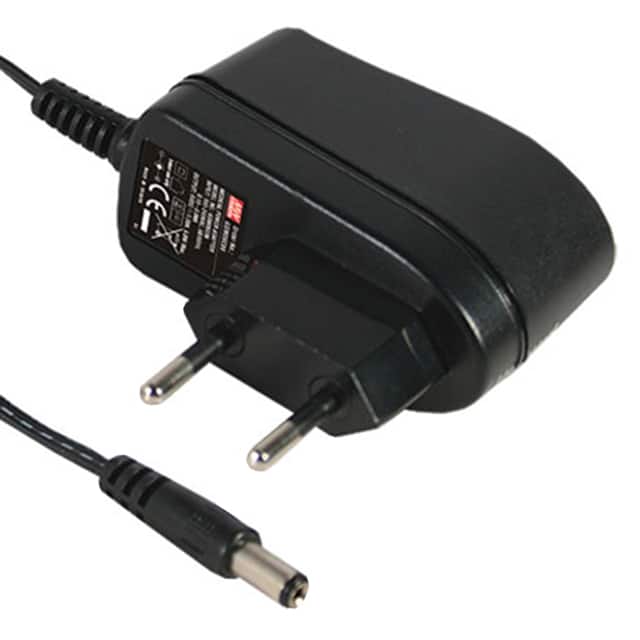

The Mean Well USA GSM06E05-P1J is a compact AC/DC wall mount power adapter designed for various applications requiring a stable 5V DC output. This adapter delivers up to 6W of power with a maximum current of 1.2A, suitable for low-power electronic devices.
Key electrical specifications include a Level V efficiency rating, ensuring energy conservation during operation. The adapter operates within a temperature range of 0°C to 50°C, making it suitable for a variety of environmental conditions. It features a fixed blade input connector for European regions and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
Designed as a Class II wall mount unit, the GSM06E05-P1J offers a convenient and safe power solution. Its dimensions are 66.0mm in length, 32.0mm in width, and 42.5mm in height. The integrated cord measures 48 inches (1.22m) in length. The adapter also boasts a low no-load power consumption of 300mW maximum.
5V at 1.2A.
6W.
Level V.
0°C to 50°C.
CEE 7/16.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
Positive center.
