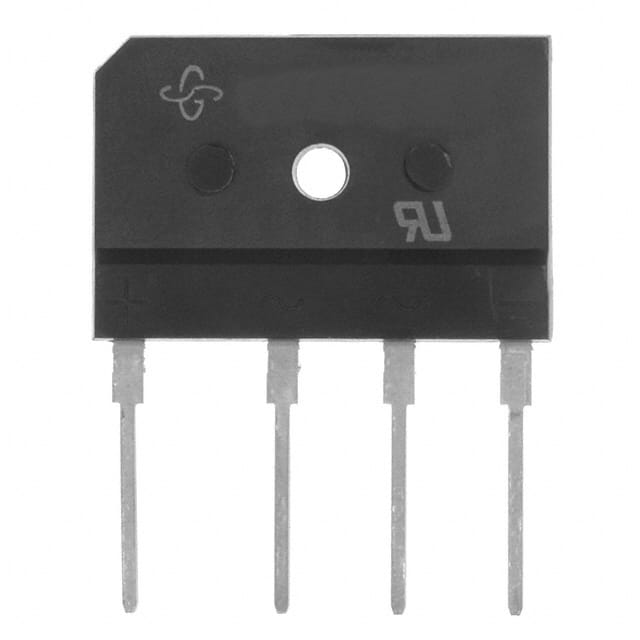

GSIB2560-E3/45 The Vishay GSIB2560-E3/45 is a single-phase bridge rectifier with a maximum repetitive peak reverse voltage of 600V and average forward current of 25A (with heatsink) or 3.5A (without heatsink). It is housed in a GSIB-5S through-hole package.
Mfr Part #:

GSIB2560-E3/45

Available from 3 distributors
Mfr Name: Vishay
Vishay
The Vishay GSIB2560-E3/45 is a single-phase bridge rectifier with a maximum repetitive peak reverse voltage of 600V and average forward current of 25A (with heatsink) or 3.5A (without heatsink). It is housed in a GSIB-5S through-hole package.
✓ Total Stock: 41,820 pcs
$ Price Range: $1.29 - $3.97

GSIB2560-E3/45 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
37,220 pcs
On Request
37220 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GSIB2560-E3/45 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Industrial Grade
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

GSIB2560-E3/45 Description

Short technical summary and product information.

The Vishay GSIB2560-E3/45 is a single-phase bridge rectifier designed for general purpose AC/DC full wave rectification. It features a thin single in-line GSIB-5S package with glass passivated chip junctions for high surge current capability and high case dielectric strength of 2500 V RMS. The device has a maximum repetitive peak reverse voltage (VRRM) of 600 V and can deliver an average forward rectified current (IF(AV)) of 25 A when mounted on a heatsink (derated to 3.5 A without heatsink on a PCB). Surge current capability is 350 A for a single 8.3 ms sine wave. Forward voltage is typically 1.0 V at 12.5 A per diode at 25°C. Reverse leakage current is 10 µA at 25°C and 350 µA at 125°C at rated DC blocking voltage. The operating junction and storage temperature range is -55°C to +150°C. The package is through-hole mount with matte tin plated leads, solderable per J-STD-002. Maximum mounting torque is 10 cm-kg, recommended 5.7 cm-kg. The E3 suffix indicates RoHS compliance. Typical applications include AC/DC bridge rectification in switching power supplies, home appliances, office equipment, and industrial automation.

GSIB2560-E3/45 Quick Information

Product Type: Bridge Rectifier
Series: GSIB25
Canonical Name: GSIB2560-E3/45 Single-Phase Bridge Rectifier
Subcategory: Bridge Rectifiers

GSIB2560-E3/45 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

GSIB2560-E3/45 Estimated Pricing

Qty Low High
1+ $3.97 $3.97
10+ $2.09 $2.09
100+ $1.66 $1.66
500+ $1.46 $1.46
1,000+ $1.37 $1.37
5,000+ $1.29 $1.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

GSIB2560-E3/45 Features

  • Single-phase bridge rectifier in GSIB-5S package.
  • Rated at 600V repetitive peak reverse voltage.
  • Average forward current of 25A with heatsink.
  • High surge current capability of 350A.
  • Through-hole mounting with matte tin plated leads.

GSIB2560-E3/45 Applications

  • Used in AC/DC bridge rectification circuits.
  • Suitable for switching power supply front ends.
  • Ideal for home appliance and office equipment power stages.
  • Applicable in industrial automation power modules.

GSIB2560-E3/45 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage (VRRM)?

The VRRM is 600 V.

What is the average rectified current rating?

The IF(AV) is 25 A with heatsink at TC=98°C, and 3.5 A without heatsink at TA=25°C mounted on PCB.

What is the forward voltage drop?

The forward voltage is 1.0 V maximum at IF=12.5 A per diode at 25°C.

What is the package type?

The package is GSIB-5S, a 4-SIP through-hole package.

What is the peak forward surge current?

The IFSM is 350 A for a single sine-wave of 8.3 ms.

What is the reverse leakage current?

The reverse current is 10 µA maximum at rated DC blocking voltage at 25°C, and 350 µA at 125°C.

Is this part RoHS compliant?

Yes, the E3 suffix indicates RoHS compliance, as per the datasheet.
