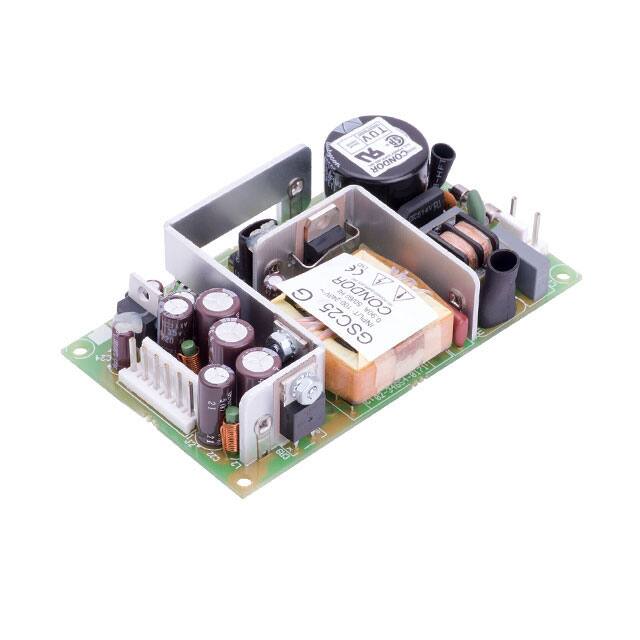

The GSC25AG is a 25W open-frame AC DC converter manufactured by SL Power Electronics Manufacture of Condor/Ault Brands. It operates from a universal input of 90-264 VAC at 47-63 Hz and provides three regulated DC outputs: +5.1V at 2.5A, +12V at 1.5A, and -12V at 0.2A. The converter achieves a minimum efficiency of 70% at full load and nominal line. It features overvoltage protection, output regulation of ±1%, and low output noise (0.5% rms, 1% pk-pk).
Designed for reliable performance, the GSC25AG delivers 25W continuous power with a 28W peak capability for up to 60 seconds. It includes built-in power limiting set to approximately 30W and provides 15 ms hold-up time at full load. The transient response is 750 µs typical for a 50% load step. The operating temperature range is 0°C to 70°C with derating.
The converter comes in a chassis-mount open-frame package measuring 108.0mm x 63.5mm x 21.8mm. It meets conducted EMI standards including FCC Class B, CISPR 22 Class B, and CISPR 11 Class B, and complies with EN61000-4-2/3/4/5 immunity standards.
The input voltage range is 90-264 VAC at 47-63 Hz single phase.
Outputs are +5.1V at 2.5A, +12V at 1.5A, and -12V at 0.2A.
The operating temperature range is 0°C to 70°C with derating.
Minimum efficiency is 70% at full rated load and nominal input voltage.
Yes, overvoltage protection is standard.
The converter is chassis mount with open-frame construction and comes in bulk packaging.
