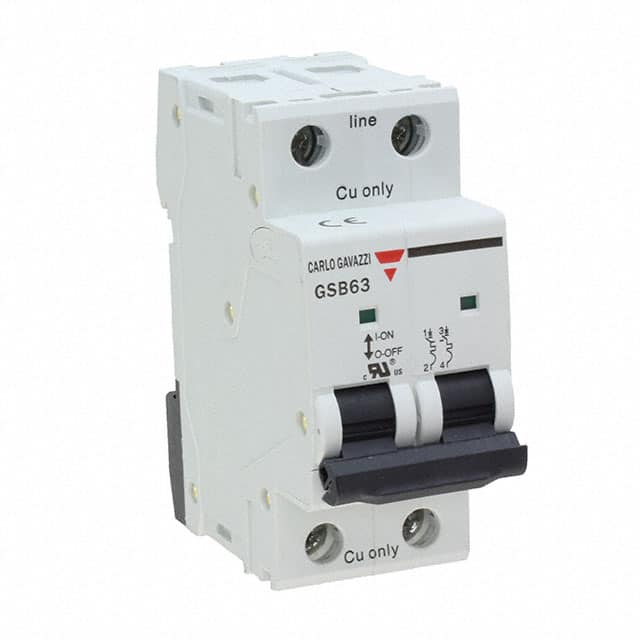

GSB632PC6 Carlo Gavazzi GSB632PC6 is a UL1077 listed miniature circuit breaker with 2 poles, 6A current rating, and 480V voltage rating. It features C tripping characteristics for moderate inrush currents.
Mfr Part #:

GSB632PC6

Mfr Name: Carlo Gavazzi
Carlo Gavazzi
Carlo Gavazzi GSB632PC6 is a UL1077 listed miniature circuit breaker with 2 poles, 6A current rating, and 480V voltage rating. It features C tripping characteristics for moderate inrush currents.
Stock on Request

GSB632PC6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Industrial Grade
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

GSB632PC6 Description

Short technical summary and product information.

The Carlo Gavazzi GSB632PC6 is a miniature circuit breaker (MCB) designed for supplementary protection in accordance with UL1077. It has 2 poles, rated at 6A and 480V, with C curve tripping characteristics suitable for moderate inrush currents such as those found in motor and lighting circuits.



Mounting is via DIN rail, and the breaker features a lever actuator for manual on/off control. The interruption rating is 5 kA.



Commonly used in industrial control panels, HVAC equipment, and other applications requiring overcurrent protection. The UL1077 listing indicates it is intended for supplementary protection, not branch circuit protection.

GSB632PC6 Quick Information

Product Type: Miniature Circuit Breaker
Canonical Name: Carlo Gavazzi GSB632PC6 - Miniature Circuit Breaker, UL1077, 2 Pole, 6A, 480V, C Curve
Subcategory: UL1077 Supplementary Protector

GSB632PC6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GSB632PC6 Features

  • 2-pole configuration for dual circuit protection.
  • Rated at 6A and 480V AC.
  • C curve tripping characteristics for moderate inrush.
  • UL1077 listed supplementary protector.
  • DIN rail mountable with lever actuator.

GSB632PC6 Applications

  • Overcurrent protection for control circuits.
  • Supplementary protection in industrial panels.
  • Short circuit protection for lighting loads.
  • Motor control circuit protection.
  • Protection of auxiliary circuits in machinery.

GSB632PC6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Carlo Gavazzi GSB632PC6?

6A.

What is the voltage rating of the GSB632PC6?

480V.

How many poles does the GSB632PC6 have?

2 poles.

What is the tripping characteristic of the GSB632PC6?

C curve, meaning it trips between 5 and 10 times the rated current.

What is the mounting type for the GSB632PC6?

DIN Rail.

What actuator type is used on the GSB632PC6?

Lever.

What is the approval agency for the GSB632PC6?

UL1077.
