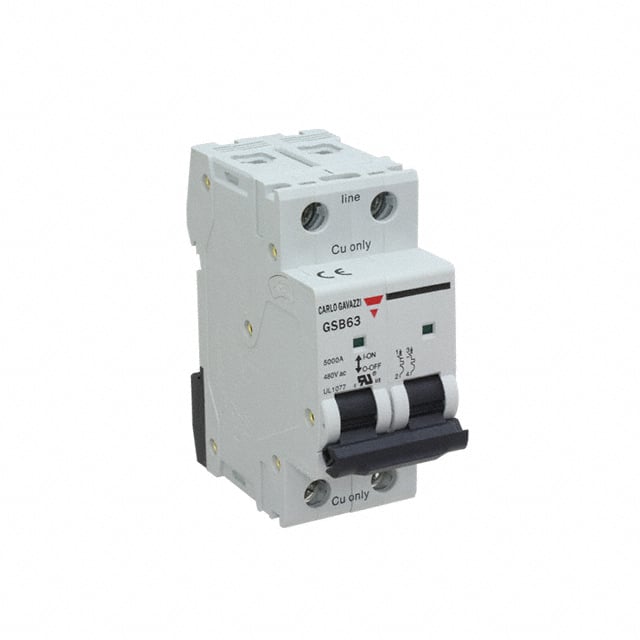

The Carlo Gavazzi GSB63 Series GSB632PC40 is a supplementary circuit protector designed for applications where branch circuit protection is already provided. This 2-pole breaker features a C-curve tripping characteristic and a 40A current rating, suitable for protection against short circuit and overload currents.
With UL1077 recognition, this thermal magnetic breaker offers reliable protection. It is designed for easy installation with a DIN rail mounting type and a lever actuator. The voltage rating is 480V, and it has a short circuit current rating (Icn) of 5kA.
This series is available in 1, 2, 3, and 4 pole arrangements, with amperage sizes up to 63A. Accessories such as bus bars, connectors, auxiliary contacts, alarm switches, and shunt releases are also available to enhance functionality.
It has a C curve tripping characteristic for moderate inrush currents.
Rated for 480V AC.
The Icn is 5kA.
DIN Rail mount.
UL1077 approved.
2 poles.
Yes, the distributor part number 1864-2343-ND is a cross reference.
