| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Rated Voltage | |
| Voltage Rating |

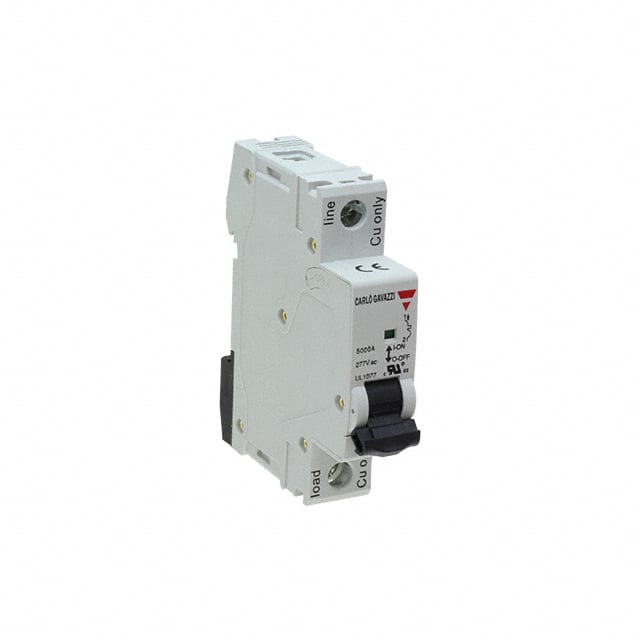

The Carlo Gavazzi GSB631PC32 is a supplementary circuit protector designed for overcurrent protection in applications where branch circuit protection is already provided. This miniature circuit breaker features a thermal magnetic tripping mechanism and a Type C tripping characteristic, suitable for protecting circuits against short circuit and overload currents.
Key electrical specifications include a rated current of 32A and a voltage rating of up to 480V. It has a rated short-circuit breaking capacity (Icn) of 5kA at 230V, conforming to EN 60898 standards. The breaker is UL1077 recognized and designed for easy installation on a DIN rail.
This 1-pole unit is part of the GSB63 series, offering a competitive line of supplementary circuit protectors available in various pole configurations and amperage sizes up to 63A. It is suitable for applications requiring reliable overcurrent protection with a focus on safety and compliance.
The GSB631PC32 is rated for 32A continuous current.
The GSB631PC32 is rated for 277V and 480V AC.
It has a C-curve tripping characteristic.
It is a 1-pole circuit breaker.
The short-circuit breaking capacity is 5kA.
It mounts on a DIN rail.
It is UL1077 approved.
