| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

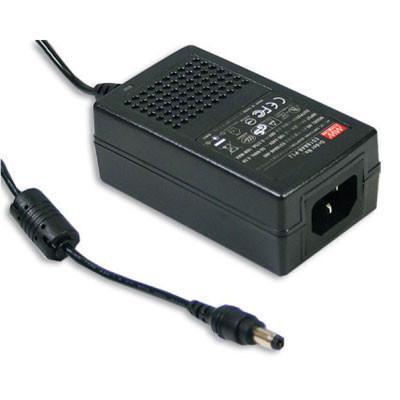

This Mean Well USA GS25A15-P1J is a 25W AC/DC desktop power adapter designed for ITE (Commercial) applications. It provides a stable 15V output voltage with a maximum current of 1.66A.
The adapter features an efficiency rating of Level V and operates within a temperature range of 0°C to 50°C. It includes an IEC 320-C14 input connector and a barrel plug output with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm. The device has a positive center polarization.
With a compact form factor measuring 93.0mm x 54.0mm x 36.0mm, this desktop adapter is suitable for various international applications. It also boasts a low no-load power consumption of 300mW maximum. The unit is compliant with RoHS3 standards and has an MSL rating of 1.
The output voltage is 15V.
The maximum output current is 1.66A.
The power rating is 25W.
The operating temperature range is 0°C to 50°C.
It uses an IEC 320-C14 input connector.
The output barrel plug has dimensions of 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The adapter is RoHS3 Compliant.
