| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

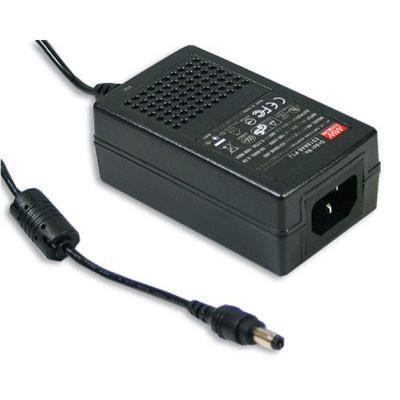

The Mean Well USA GS25A07-P1J is an AC/DC desktop adapter with a power output of 22W. It delivers a stable 7.5V DC output at a current of 2.93A, suitable for various commercial applications.
This adapter features Level V efficiency, ensuring reduced energy consumption. It operates within a temperature range of 0°C to 50°C, making it reliable for diverse environmental conditions. The input connector is an IEC 320-C14, and the output connector is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization.
Designed for international utilization, the GS25A07-P1J complies with standard number 60950-1 and carries approvals from agencies including CB, CCC, CE, cULus, EAC, FCC, GS, and TUV. Its form factor is a Desktop (Class I) type, with dimensions of 93.0mm x 54.0mm x 36.0mm. The unit requires a separate power cord.
The GS25A07-P1J provides an output voltage of 7.5VDC at 2.93A.
The GS25A07-P1J has a power rating of 22W.
The operating temperature range for the GS25A07-P1J is 0°C to 50°C.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
No, the GS25A07-P1J requires a separate power cord.
The dimensions are 93.0mm in length, 54.0mm in width, and 36.0mm in height.
