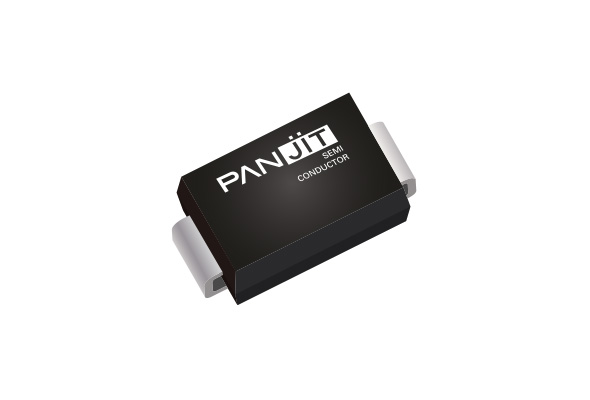

The PANJIT GS1M is a surface mount rectifier diode belonging to the GS1A~GS1N series. It is designed for applications requiring optimized board space and easy pick-and-place assembly. This diode features a JEDEC DO-214AC molded plastic case with solder-plated terminals.
Key electrical characteristics include a maximum average forward current of 1A at 100°C case temperature and a maximum forward voltage of 1.1V at 1A. The reverse voltage rating ranges from 50V to 1200V, with the GS1M variant capable of handling up to 1200V DC blocking voltage. It also exhibits a low DC reverse current, measuring 1μA at 25°C and 50μA at 125°C.
The device is constructed with a glass-passivated chip junction and is compliant with EU RoHS 2.0 standards, utilizing a green molding compound as per IEC 61249. The operating and storage temperature range is -55°C to +150°C. Standard packaging is on a 12mm tape (EIA-481).
This rectifier is suitable for various power supply and power management applications where space efficiency and reliable rectification are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1200V.
1A at TL=100°C.
1.1V.
JEDEC DO-214AC (SMA) surface mount package.
35A for an 8.3ms single half sine-wave.
-55 to +150°C.
Yes, the device is lead-free.
