| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

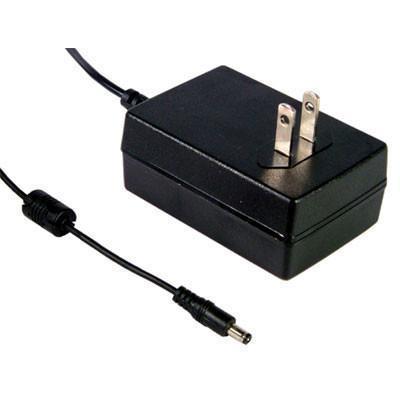

The Mean Well USA GS18U48-P1J is an 18W AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 48V output with a current rating of 375mA.
This adapter operates within a temperature range of 0°C to 50°C and features Level V efficiency, ensuring energy savings. The input connector is a NEMA 1-15P, and the output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug.
Key specifications include a compact form factor with dimensions of 79.0mm x 54.0mm x 33.0mm and a cord length of 72 inches (1.83m). The adapter is compliant with standards such as 60950-1 and approved by agencies including CB, cULus, FCC, and TUV.
48V DC.
0°C to 50°C.
Wall mount (Class II).
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
NEMA 1-15P fixed blade.
CB, cULus, FCC, TUV.
Level V.
