| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

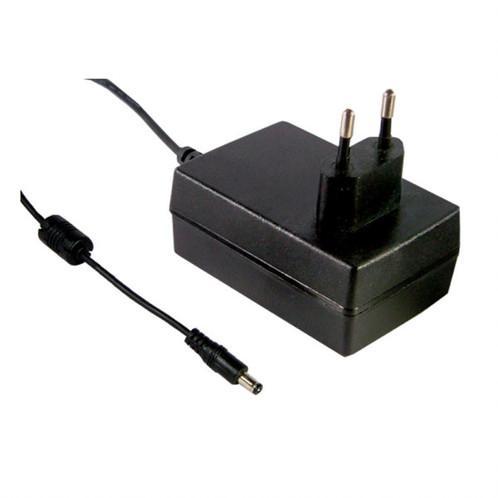

The Mean Well USA GS18E24-P1J is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum power of 25W and an input current of 1.04A.
This adapter features Level V efficiency and operates within a temperature range of 0°C to 50°C. The input connector is KSC 8305 with a fixed blade type, and the output connector is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The unit is housed in a Wall Mount (Class II) form factor.
Designed for use in Europe, the GS18E24-P1J has a cord length of 72 inches (1.83m) and a low no-load power consumption of 300mW maximum. It complies with safety standards including 60950-1 and carries approvals from CB, CE, GS, and TUV.
The GS18E24-P1J has an output voltage of 24V and a power rating of 25W.
The adapter has a Level V efficiency rating.
The GS18E24-P1J is intended for ITE (Commercial) applications.
The operating temperature range is 0°C to 50°C.
It uses a Barrel Plug connector with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
